| DESKRIPSI PRODUK |
||

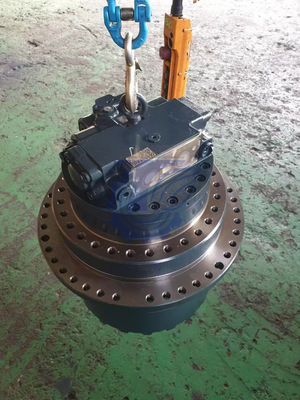

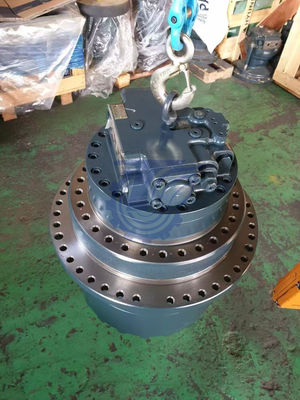

| Model:31Q7-40150 31Q7-40140 31Q7-40070 39Q7-42100 39Q7-42101 FOR Hyundai R250LC-9 R250LC-9A R260LC-9S RB260LC-9S EXCAVATOR PARTS HYDRAULIC TRAVEL MOTOR FINAL DRIVE AFTERMARKET Kualitas tinggi ORIGINAL | Kategori:Perangkat motor berjalan |
|
| Merek:TQ |
Tempat Asal:Negara Lain |
|
| Kondisi: Asli & OEM |
Garansi: 12 bulan |
|
| MOQ: 1 pcs |
Kapasitas produksi: 1000 pcs/bulan |
|
| Standar atau Tidak Standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Jaminan Perdagangan |
|
| Waktu pengiriman: 1-3 hari (tergantung pesanan) |
Cara Pengangkutan: Di Laut, Udara atau DHL/FEDEX/TNT/EMS |
|
| Jaminan:Kami akan memeriksa dan mengirim gambar rinci kepada pembeli untuk konfirmasi | ||
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| * | 31Q7-40070 | [2] | ASSY MOTOR Perjalanan | |
| *-1. | 31Q7-40150 | [1] | MOTOR perjalanan | |
| 29 | XKAY-00475 | [1] | Cover-Back | tua |
| 29 | XKAY-02334 | [1] | Cover-Back | Baru |
| *-13. | XKAY-01932 | [1] | SPOOL KIT | |
| N30. | XKAY-01933 | [1] | SPOOL | |
| N31. | XKAY-00478 | [2] | CEK | |
| N32. | XKAY-00479 | [2] | SPRING | |
| N33. | XKAY-00480 | [2] | PLUG | |
| N34. | XKAY-01176 | [2] | O-RING | |
| 35 | XKAY-00482 | [2] | SEAT-SPRING | |
| 36 | XKAY-00483 | [2] | SPRING | |
| 37 | XKAY-00484 | [2] | PELUAR | |
| 38 | XKAY-00485 | [2] | SPRING | |
| 39 | XKAY-00486 | [2] | SPOOL | |
| 40 | XKAY-00487 | [2] | Baja bola | |
| 41 | XKAY-00488 | [2] | SPRING | |
| 42 | XKAY-00489 | [2] | PLUG | |
| 43 | XKAY-00490 | [2] | SEAT-SPRING | |
| 44 | XKAY-01177 | [2] | O-RING | |
| 45 | XKAY-00492 | [8] | Bolt-Wrench | |
| 46 | XKAY-01934 | [2] | Klep RELIEF ASSY | |
| 46-1. | XKAY-00678 | [1] | PLUG | |
| 46-2. | XKAY-00679 | [1] | Panduan | |
| 46-3. | XKAY-01412 | [1] | O-RING | |
| 46-4. | XKAY-00680 | [1] | SPRING | |
| 46-5. | XKAY-00681 | [1] | SEAT-SPRING | |
| 46-6. | XKAY-00682 | [1] | Sleeve | |
| 46-7. | XKAY-00683 | [1] | Piston | |
| 46-8. | XKAY-01413 | [1] | O-RING | |
| 46-9. | XKAY-00684 | [2] | RING-BACK UP | |
| 46-10. | XKAY-00685 | [1] | POPPET | |
| 46-11. | XKAY-00686 | [1] | SEAT-POPPET | |
| 46-12. | XKAY-01414 | [1] | O-RING | |
| 46-13. | XKAY-00687 | [2] | RING-BACK UP | |
| 46-14. | XKAY-01098 | [1] | Pengaturan sekrup | |
| 46-15. | XKAY-00689 | [1] | NUT-HEX | |
| 46-16. | XKAY-00668 | [1] | O-RING | |
| 47 | XKAY-00494 | [1] | SPOOL | |
| 48 | XKAY-00826 | [1] | Panduan | |
| 49 | XKAY-01408 | [1] | O-RING | |
| 50 | XKAY-00497 | [1] | RING-BACK UP | |
| 51 | XKAY-01409 | [1] | O-RING | |
| 52 | XKAY-00499 | [1] | RING-BACK UP | |
| 53 | XKAY-00500 | [1] | RING-SNAP | |
| 54 | XKAY-00501 | [3] | PLUG | |
| 55 | XKAY-00900 | [4] | O-RING | |
| 56 | XKAY-00502 | [1] | SPRING | |
| 57 | XKAY-00503 | [1] | SEAT-SPRING | |
| 58 | XKAY-00504 | [1] | PLUG | |
| 59 | XKAY-00505 | [1] | SPOOL | |
| 60 | XKAY-00506 | [2] | Oriffice | |
| 61 | XKAY-00507 | [2] | Oriffice | |
| 62 | XKAY-00508 | [3] | PLUG | |
| 63 | XKAY-01410 | [3] | O-RING | |
| 64 | XKAY-00032 | [1] | PLUG | |
| 65 | XKAY-00509 | [4] | PIN | |
| 66 | XKAY-00510 | [1] | PIN | |
| 67 | XKAY-00511 | [8] | SPRING | |
| 68 | XKAY-00512 | [8] | SPRING | |
| 71 | XKAY-00385 | [16] | Bolt-Wrench | |
| 72 | XKAY-00515 | [1] | PLUG | |
| 73 | XKAY-01096 | [1] | NAME PLATE (Plat Nama) | |
| 74 | XKAY-00517 | [2] | RIVET | |
| 76 | XKAY-01936 | [2] | Oriffice | |
| 77 | XKAY-01097 | [AR] | SHIM | |
| K. | XKAY-00518 | [1] | SEAL KIT | Lihat ILLUST |
| K. | XKAY-01937 | [1] | KIT ASSY COVER belakang | Lihat ILLUST |
| K. | XKAY-02332 | [1] | KIT ASSY COVER belakang | Lihat ILLUST |
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| *-2. | 39Q7-42100 | [1] | GERRY REDUCTION TRAVEL | |
| *-2. | 39Q7-42101 | [1] | GERRY REDUCTION TRAVEL | |
| 1 | 39Q6-42110 | [1] | GANG-RING | |
| 2 | 39Q6-42120 | [2] | Berlangsung-ANG. bola | |
| 3 | 39Q6-42130 | [2] | SEAL ASSY-FLOATING | |
| 4 | 39Q6-42140 | [1] | RING-NUT | |
| 5 | 39Q6-42150 | [1] | PLATE-LOCK | |
| 6 | S017-120166 | [2] | BOLT-HEX | |
| 7 | 39Q7-42160 | [1] | Perumahan | |
| 8 | S129-070206 | [20] | Bolt-Socket, bersatu | |
| 9 | 39Q6-42170 | [1] | Pergaulan | |
| K10. | 39Q6-42190 | [1] | Pengangkut 2 | |
| K11. | 39Q6-42200 | [4] | Gear-Planetary 2 | |
| K12. | 39Q6-42210 | [4] | Jaring-jarum 2 | |
| K13. | 39Q6-42220 | [8] | WASHER-THRUST 2 | |
| K14. | 39Q6-42230 | [4] | Pembawa PIN 2 | |
| K15. | S472-800164 | [4] | Pin-SPRING | |
| K16. | 39Q6-42350 | [4] | PIN-SOLID 2 | |
| 17 | 39Q6-42240 | [1] | Gear-SUN 2 | |
| K18. | 39Q6-42260 | [1] | Pengangkut 1 | |
| K19. | 39Q6-42270 | [3] | Gear-Planetary 1 | |
| K20. | 39Q6-42280 | [3] | Jarum bantalan 1 | |
| K21. | 39Q6-42290 | [6] | Kekuatan pencuci 1 | |
| K22. | 39Q6-42300 | [3] | PIN-CARRIER 1 | |
| K23. | S472-600364 | [3] | Pin-SPRING | |
| 24 | 39Q7-42310 | [1] | Gear-SUN 1 | |
| 25 | 39Q6-42320 | [1] | Plate-thrust | |
| 26 | 39Q6-42330 | [1] | PELUAR | |
| 27 | S109-16110D | [24] | BOLT-SOCKET | |
| 28 | P220-110205 | [3] | PLUG-HEX | |
| 29 | S602-035001 | [1] | Pengendalian cincin | |
| 30 | 39Q7-42340 | [1] | NAME PLATE (Plat Nama) | |
| 30 | 39Q7-42341 | [1] | NAME PLATE (Plat Nama) | |
| 31 | 39Q6-41800 | [2] | RIVET | |
| K. | 39Q6-42250 | [1] | Pengangkut ASSY KIT 1 | Lihat ILLUST |
| K. | 39Q6-42180 | [1] | Pengangkut ASSY KIT 2 | Lihat ILLUST |
