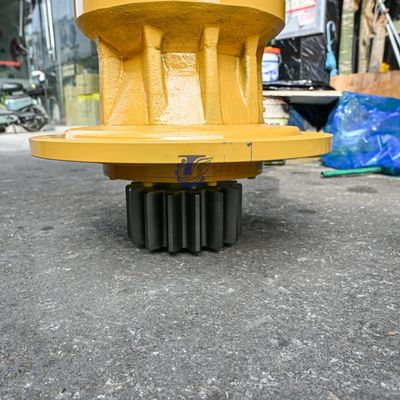

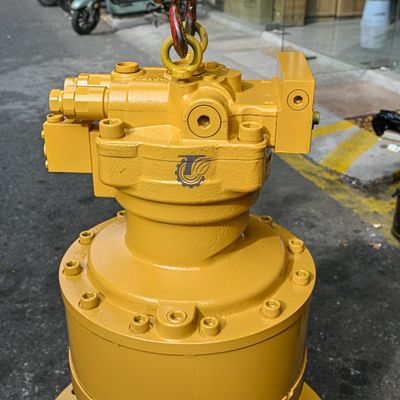

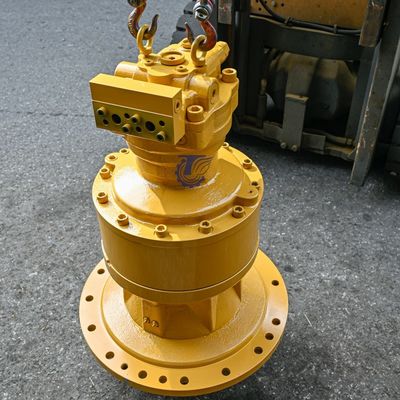

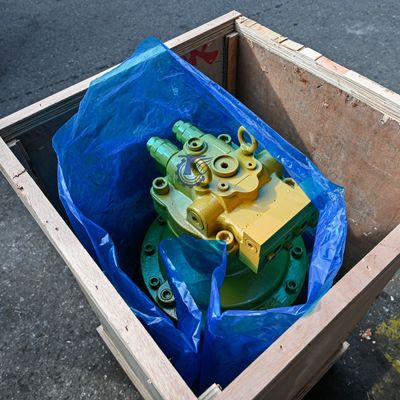

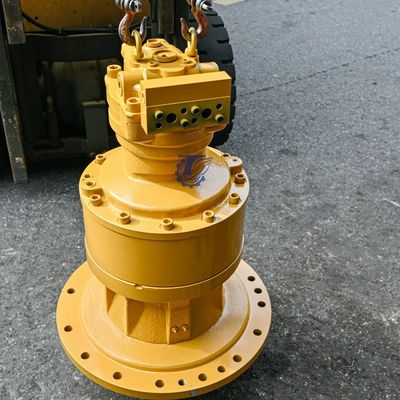

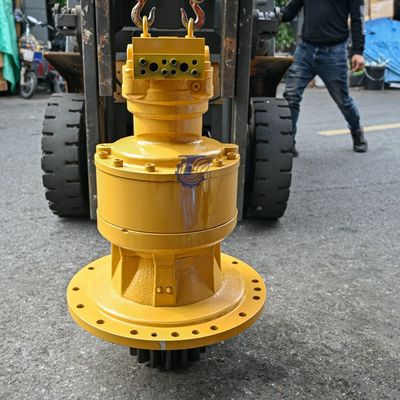

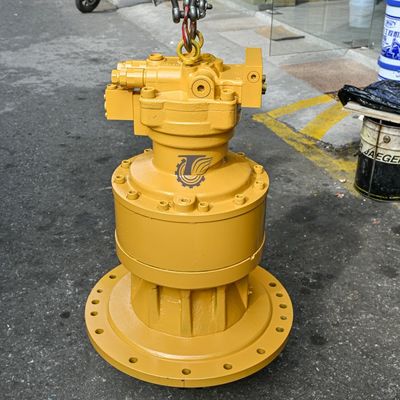

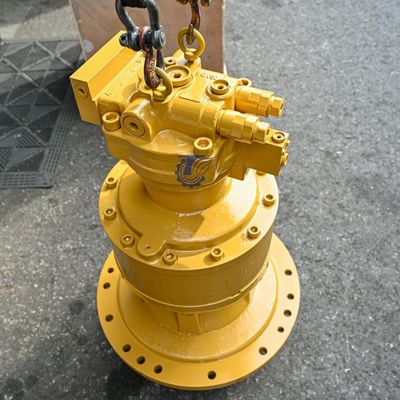

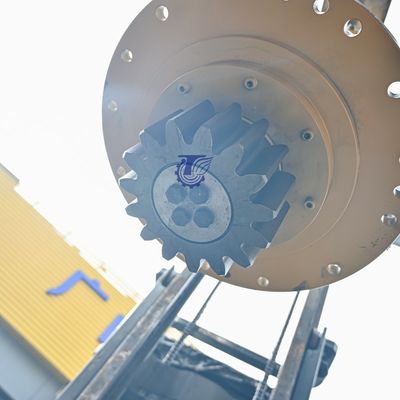

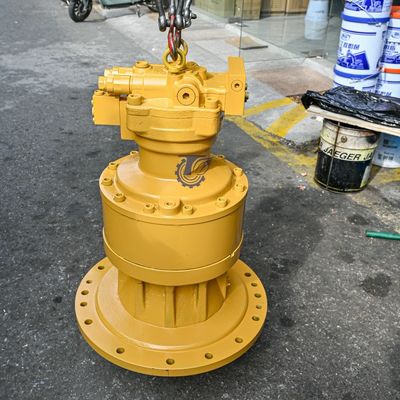

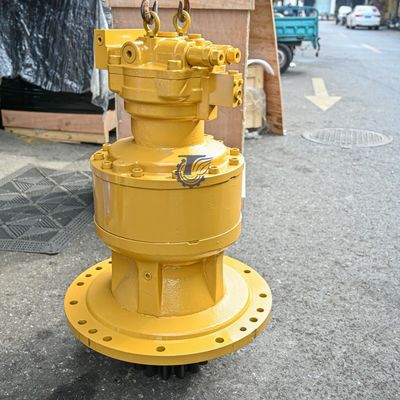

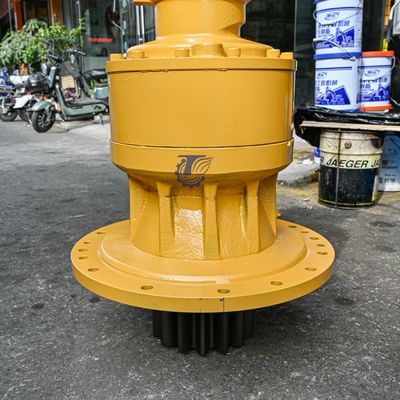

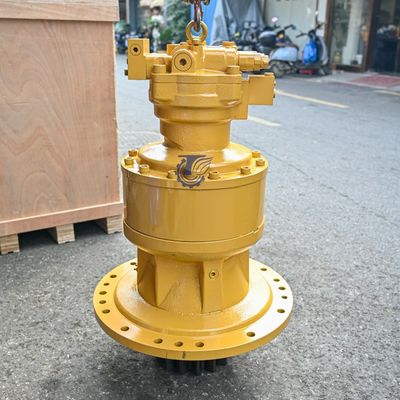

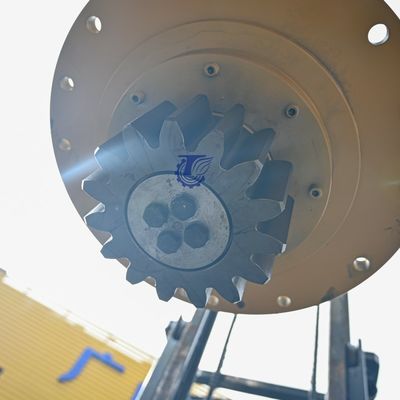

31ND-11140 31ND-13130 Untuk Hyundai R1200-9 R800LC-9 R800LC-7A Excavators Parts Hydraulic Swing Motor Swing Gearbox Swing REDUCTION GEARA Swing Device (REAR) Asli
| DESKRIPSI PRODUK |
||
| Model:31ND-11140 31ND-13130 Untuk Hyundai R1200-9 R800LC-9 R800LC-7A Excavators Parts Hydraulic Swing Motor Swing Gearbox Swing REDUCTION GEARA Swing Device (REAR) Asli | Kategori: Perangkat Swing | |
| Merek: TQ | Tempat Asal:Negara Lain |
|
| Kondisi: Asli & OEM |
Garansi: 12 bulan |
|
| MOQ: 1 pcs |
Kapasitas produksi: 1000 pcs/bulan |
|
| Standar atau Tidak Standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Jaminan Perdagangan |
|
| Waktu pengiriman: 1-3 hari (tergantung pesanan) |
Cara Pengangkutan: Di Laut, Udara atau DHL/FEDEX/TNT/EMS |
|
| Jaminan:Kami akan memeriksa dan mengirim gambar rinci kepada pembeli untuk konfirmasi | ||
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| * | @ | [1] | Swing Motor ASSY | |
| *-1. | 31ND-13130 | [1] | Unit Swing Motor | |
| 1 | XKAY-00161 | [1] | Badan | |
| 2 | XKAY-00162 | [1] | SEAL-OIL | |
| 3 | XKAY-00163 | [1] | Berkas-Roller | |
| 4 | XKAY-00164 | [1] | RING-SNAP | |
| 5 | XKAY-00165 | [1] | SHAFT | |
| 6 | XKAY-00166 | [1] | PIN | |
| 7 | XKAY-00167 | [1] | RING-STOP | |
| 8 | XKAY-00168 | [1] | Sepatu plat | |
| 9 | XKAY-00721 | [1] | Blok-silinder | |
| 10 | XKAY-00170 | [9] | SPRING | |
| 11 | XKAY-00171 | [1] | Panduan Seat-Ball | |
| 12 | XKAY-00172 | [1] | Guide-Ball | |
| 13 | XKAY-00173 | [1] | PLATE-SET | |
| 14 | XKAY-00174 | [9] | PISTON ASSY | |
| 15 | XKAY-00175 | [4] | FRIKSI PLATE | |
| 16 | XKAY-00176 | [4] | PELAT | |
| 17 | XKAY-00177 | [1] | PISTON-BRAKE | |
| 18 | XKAY-00722 | [2] | O-RING | |
| 19 | XKAY-00179 | [19] | SPRING | |
| 20 | XKAY-00979 | [1] | Plak-Valve | |
| 21 | XKAY-00181 | [2] | PIN | |
| 22 | XKAY-00182 | [1] | Jaring bantalan | |
| 23 | XKAY-01620 | [1] | Cover-Back | |
| 23 | XKAY-02190 | [1] | Cover-Back | |
| 24 | XKAY-00184 | [1] | Bolt-Wrench | |
| 25 | XKAY-00185 | [1] | Bolt-Wrench | |
| 26 | XKAY-00186 | [2] | POPPET | |
| 27 | XKAY-00187 | [2] | SPRING | |
| 28 | XKAY-00188 | [2] | PLUG | |
| 29 | XKAY-00189 | [2] | O-RING | |
| 30 | XKAY-01622 | [2] | Klep RELIEF ASSY | |
| 31 | XKAY-00148 | [1] | Keterlambatan waktu katup | |
| 32 | XKAY-00149 | [3] | Bolt-Wrench | |
| 33 | XKAY-00140 | [3] | PLUG | |
| 34 | XKAY-00191 | [2] | O-RING | |
| 35 | XKAY-00724 | [1] | O-RING | |
| 36 | XKAY-00193 | [1] | BUSHING | |
| *-2. | @ | [1] | Gear pengurangan ayunan | SEE 4110 |
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| *-2. | 31ND-13140 | [1] | Gear pengurangan ayunan | |
| *-2. | 31ND-13141 | [1] | Gear pengurangan ayunan | |
| *-2. | 31ND-13142 | [1] | Gear pengurangan ayunan | |
| *-2. | 31ND-13143 | [1] | Gear pengurangan ayunan | |
| *-2. | 31ND-13142AR | [1] | Gear pengurangan ayunan | |
| N1. | XKAQ-00406 | [1] | KASING | |
| 2 | XKAQ-00458 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00146 | [1] | Berkas-Roller | |
| 4 | XKAQ-00147 | [1] | Plat-COVER | |
| 5 | XKAQ-00148 | [8] | BOLT-HEX | |
| 6 | XKAQ-00149 | [1] | SEAL-OIL | |
| 7 | XKAQ-00027 | [1] | Berkas-Roller | |
| 7 | XKAQ-00791 | [1] | Berkas-Roller | |
| 8 | XKAQ-00459 | [1] | Pengangkut ASSY 2 | |
| 8 | XKAQ-00808 | [1] | Pengangkut ASSY 2 | |
| 8-1. | XKAQ-00408 | [1] | Pengangkut 2 | |
| 8-1. | XKAQ-00793 | [1] | Pengangkut 2 | |
| 8-2. | XKAQ-00460 | [4] | GEAR-PLANET 2 | |
| 8-3. | XKAQ-00410 | [4] | PIN 2 | |
| 8-4. | XKAQ-00411 | [4] | PEMANAS | |
| 8-5. | XKAQ-00050 | [4] | Pin-SPRING | |
| 8-6. | XKAQ-00232 | [4] | Pin-SPRING | |
| 9 | XKAQ-00412 | [4] | Pengangkut ASSY 1 | |
| 911, tolong. | XKAQ-00413 | [1] | Pengangkut 1 | |
| 9-2. | XKAQ-00414 | [1] | Gear-Planetary 1 | |
| 9-3. | XKAQ-00415 | [4] | PIN 1 | |
| 9-4. | XKAQ-00030 | [4] | Jarum kandang | |
| 9 sampai 5. | XKAQ-00416 | [4] | Plat 2 sisi | |
| 9-6. | XKAQ-00417 | [4] | Plat 1 sisi | |
| 9-7. | XKAQ-00041 | [4] | RING-STOP | |
| 9-8. | XKAQ-00048 | [4] | Pin-SPRING | |
| 10 | XKAQ-00463 | [1] | SUN GEAR 2 | |
| 11 | XKAQ-00418 | [1] | SUN GEAR 1 | |
| 12 | XKAQ-00420 | [1] | GANG-RING | |
| 13 | XKAQ-00072 | [2] | PIN-KNOCK | |
| 14 | XKAQ-00171 | [1] | RING-SPACEER | |
| 15 | XKAQ-00421 | [1] | SPACER | |
| 16 | XKAQ-00464 | [1] | Gear-pinion | |
| 17 | XKAQ-00164 | [1] | PLATE-LOCK | |
| 18 | XKAQ-00042 | [2] | BOLT-HEX | |
| 19 | XKAQ-00292 | [2] | LAMPUNG LAUNCHER | |
| 20 | XKAQ-00260 | [1] | Kekuatan RING-THRUST | |
| 21 | XKAQ-00750 | [1] | PELUAR | |
| 21 | XKAQ-00982 | [1] | PELUAR | |
| 22 | XKAQ-00170 | [4] | BOLT-SOCKET | |
| 23 | XKAQ-00425 | [16] | BOLT-SOCKET | |
| 24 | XKAQ-00155 | [1] | Plug-Socket | |
| 25 | XKAQ-00049 | [1] | PLUG | |
| 26 | XKAQ-00274 | [2] | PLUG | |
| 27 | XKAQ-00166 | [1] | BAR-GAUGE | |
| 28 | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 29 | XKAQ-00798 | [1] | Air Breather ASSY | |
| 29-1. | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
| 29-2. | XKAQ-00799 | [1] | POST AIR BREATHER | |
| 30 | XKAQ-00751 | [1] | O-RING | |
| 31 | XKAQ-00143 | [1] | Respirator pasca-udara | |
| 32 | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
| N. | @ | [AR] | Bagian-bagian yang tidak disuplai |
