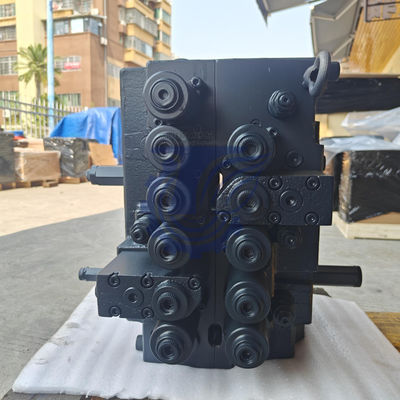

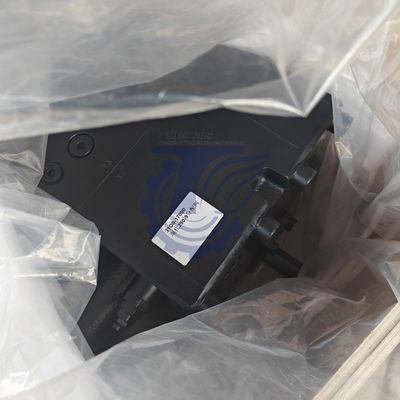

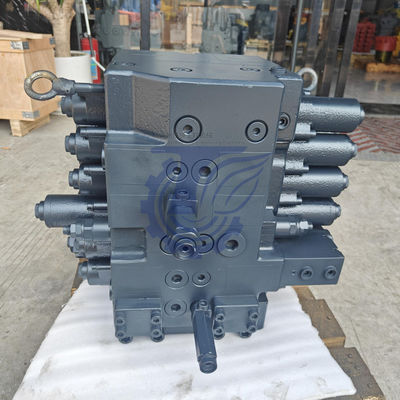

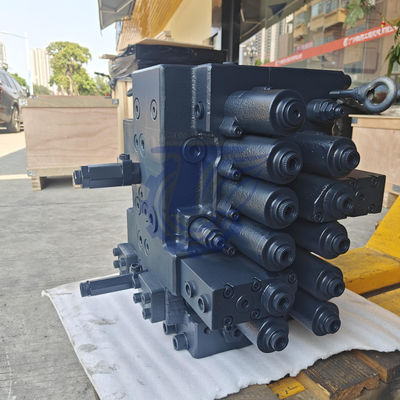

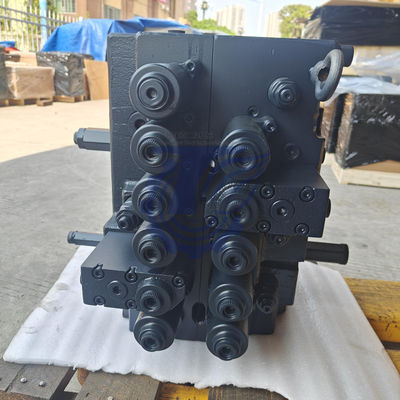

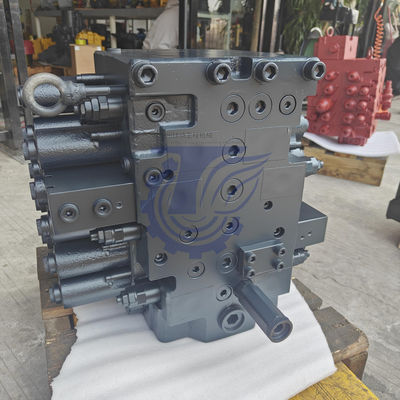

31Q8-17000 31Q8-17001 31Q8-17002 Untuk Hyundai R290LC-9 Excavator PARTS Hydraulic MAIN CONTROL VALVE aftermarket Asli
| DESKRIPSI PRODUK |
||
| Model:31Q8-17000 31Q8-17001 31Q8-17002 Untuk Hyundai R290LC-9 Excavator PARTS Hydraulic MAIN CONTROL VALVE aftermarket Asli | Kategori:Pompa hidraulik |
|
| Merek: TQ | Tempat Asal:Negara Lain |
|
| Kondisi: Asli & OEM |
Garansi: 12 bulan |
|
| MOQ: 1 pcs |
Kapasitas produksi: 1000 pcs/bulan |
|
| Standar atau Tidak Standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Jaminan Perdagangan |
|
| Waktu pengiriman: 1-3 hari (tergantung pesanan) |
Cara Pengangkutan: Di Laut, Udara atau DHL/FEDEX/TNT/EMS |
|
| Jaminan:Kami akan memeriksa dan mengirim gambar rinci kepada pembeli untuk konfirmasi | ||
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| * | 31Q8-17000 | [1] | Klep Kontrol Utama | |
| * | 31Q8-17001 | [1] | Klep Kontrol Utama | |
| * | 31Q8-17002 | [1] | Klep Kontrol Utama | |
| N1. | 31Q8-17610 | [1] | Perumahan-P1 | |
| N1. | 31Q8-17611 | [1] | Perumahan-P1 | |
| N1. | 31Q8-17610 | [1] | Perumahan-P1 | |
| 3 | 31Q8-17630 | [1] | SPOOL KIT-TRAVEL | |
| 5 | 31Q8-17650 | [1] | SPOOL KIT-BOOM 1 | |
| 5 | 31Q8-17651 | [1] | SPOOL KIT-BOOM 1 | |
| 6 | 31Q8-17660 | [1] | SPOOL KIT-BUCKET | |
| 6 | 31Q8-17661 | [1] | SPOOL KIT-BUCKET | |
| 8 | 31Q8-17680 | [1] | SPOOL KIT- ARM 2 | |
| 8 | 31Q8-17681 | [1] | SPOOL KIT-ARM 2 | |
| 12 | XKBF-01447 | [1] | SPOOL-BUCKET | |
| 12 | 31Q8-17721 | [1] | SPOOL KIT-ARM REGEN | |
| 14 | 31N8-17320 | [1] | Pengendalian katup | |
| N90. | 31N8-17330 | [1] | KIT-A katup pemegang | Lihat ILLUST |
| 90-1. | 31N8-18380 | [1] | POPPET-MAIN | |
| 90-2. | 31N8-18400 | [1] | PENGHATAN | |
| 90-3. | 31N8-18480 | [1] | C-RING | |
| 90-4. | 31N8-18430 | [1] | Tempat duduk boneka | |
| 90-5. | S641-010102 | [1] | RING-BACK UP | |
| 90-6. | S631-10A004 | [1] | O-RING | |
| 90-7. | 31N8-19650 | [1] | O-RING | |
| 90-8. | 31N8-18390 | [1] | SPRING-PILOT | |
| 90-9. | 31N8-18420 | [1] | PILOT POPPET-H/D | |
| 90-10. | 31N8-18450 | [1] | Guide-POPET | |
| N91. | 31N8-17340 | [1] | KIT-B untuk Klep Pengendalian | Lihat ILLUST |
| 91-1. | 31N8-18160 | [1] | BLOCK-HOLDING | |
| N91-2. | 31N8-18410 | [1] | PISTON PENGHIDUP | |
| 91-3. | 31N8-18470 | [1] | PISTON 2-MAIN | |
| 91-4. | 31N8-18440 | [1] | PISTON-PILOT | |
| 91-5. | 31N8-18460 | [1] | SPRING 1 | |
| 91-6. | 31N8-18620 | [1] | PLUG-PF1/2 | |
| 91-6. | 31N8-17500 | [1] | PLUG | |
| 91-7. | S631-018004 | [1] | O-RING | |
| 91-8. | 31N8-18680 | [2] | PLUG | |
| 16 | 31Q8-17790 | [1] | Kekuatan dari katup ASSI-PORT | |
| 17 | 31Q8-17810 | [1] | Kekuatan dari katup ASSI-PORT | |
| 22 | 31Q8-17780 | [1] | VALVE ASSY-MAIN RELIEF | |
| 23 | 31N8-17420 | [1] | VALVE-CHECK | |
| 24 | 31N8-17460 | [1] | VALVE ASSY-NEGACON | |
| 25 | 31N8-17440 | [1] | SIGNAL ORIFICE | |
| 28 | 31N8-17520 | [5] | PENGETEKAN PLUG-LOAD | |
| 29 | 31N8-17510 | [5] | PENGETEKAN PLUG-LOAD | |
| 30 | 31N4-17900 | [1] | KIT PLUG | |
| 31 | 31N8-17550 | [3] | PLUG | |
| 33 | 31N8-17540 | [1] | PLUG | |
| 38 | 31N8-18140 | [4] | COVER B1-PILOT | |
| 42 | 31N8-18370 | [1] | POPPET-BKT L/C | |
| 43 | 31N8-18190 | [4] | POPPET 1-L/C | |
| 44 | 31N8-18200 | [5] | SPRING 1-L/C | |
| 45 | 31N8-18220 | [4] | POPPET 2-L/C | |
| 46 | 31N8-18230 | [4] | SPRING 2-L/C | |
| 47 | 31N8-18530 | [1] | Sinyal POPPET | |
| 48 | 31N8-18540 | [1] | SPRING-SIGNAL | |
| 49 | 31N8-18680 | [2] | PLUG | |
| 50 | 31N8-19410 | [1] | NAME PLATE (Plat Nama) | |
| 51 | 31N8-19490 | [2] | Tipe sekrup rivet | |
| 52 | 31N8-18970 | [1] | Flang-PORT PLUG | |
| 52 | 31Q6-17910 | [1] | Flang-PORT PLUG | |
| 53 | 31N8-18980 | [1] | COVER 1 | |
| 54 | 31N8-18990 | [1] | GASKET 1 | |
| 55 | 31Q8-18910 | [1] | COVER 3 | |
| 56 | 31Q8-18920 | [1] | GASKET 3 | |
| 62 | 31N8-19630 | [5] | O-RING | |
| 63 | 31N8-19640 | [1] | O-RING | |
| 64 | S107-080454 | [8] | BOLT-SOCKET | SB-I-2013-26.PDF |
| 66 | S107-081054 | [5] | BOLT-SOCKET | |
| 67 | S107-100156 | [24] | BOLT-SOCKET | |
| 68 | S107-100354 | [5] | BOLT-SOCKET | |
| 69 | S107-101454 | [4] | BOLT-SOCKET | |
| 72 | S107-161704 | [4] | BOLT-SOCKET | |
| 73 | S411-080006 | [12] | PEMBAHASAN-PEMBUAT | |
| 74 | S411-160006 | [4] | PEMBAHASAN-PEMBUAT | |
| 75 | 31N8-19430 | [1] | CAP-DUST | |
| 76 | 31N8-19440 | [1] | CAP-DUST | |
| 77 | 31N8-19450 | [1] | CAP-DUST | |
| 78 | 31N8-19460 | [4] | CAP-DUST | |
| 80 | 31N4-18090 | [1] | PLUG | |
| 80 | 32Q6-18330 | [1] | Plug ASSY | |
| 81 | 32Q6-18310 | [1] | POPPET 3- L/C | |
| 82 | 32Q6-18320 | [1] | SPRING 3-L/C | |
| 83 | 31N4-18090 | [1] | PLUG | |
| N. | @ | [AR] | Bagian-bagian yang tidak disuplai | |
| N.K. | 31N8-17330 | [1] | KIT-A katup pemegang | Lihat ILLUST |
| NK. | 31N8-17340 | [1] | KIT-B untuk Klep Pengendalian | Lihat ILLUST |
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| * | @ | [1] | Klep Kontrol Utama | SEE 4050 |
| N2. | XKBF-01230 | [1] | Perumahan-P2 | |
| N3. | XKBF-01231 | [1] | SPOOL-LANGSUNG | |
| 4 | XKBF-01232 | [2] | SPOOL-TRAVEL | |
| 5 | XKBF-01233 | [1] | SPOOL-SWING | |
| 7 | XKBF-01235 | [1] | Keutamaan SPOOL-SWING | |
| 8 | XKBF-01236 | [1] | SPOOL-BOOM 2 | |
| 10 | XKBF-01238 | [1] | SPOOL-ARM 1 | |
| 13 | XKBF-00376 | [1] | SPOOL-OPTION | |
| 14 | XKBF-01241 | [1] | SPOOL-BC | |
| 16 | XKBF-00379 | [4] | COVER B1-PILOT | |
| N18. | XKBF-01243 | [1] | COVER A1-PILOT | |
| 24 | XKBF-01252 | [2] | PLUG | |
| 27 | XKBF-01253 | [1] | POPPET | |
| 28 | XKBF-00906 | [1] | SPRING | |
| 29 | XKBF-00911 | [1] | PISTON PENGHIDUP | |
| 30 | XKBF-01254 | [1] | POPPET-PILOT | |
| 31 | XKBF-01255 | [1] | SEAT-PILOT | |
| 32 | XKBF-00903 | [1] | C-RING | |
| 33 | XKBF-00905 | [1] | VLV dengan kunci pengikat | |
| 35 | XKBF-01266 | [1] | KIT-A2 PEMBANGUNAN | |
| N35-1. | XKBF-01267 | [1] | BLOCK P2-HOLDING | |
| 35-2. | XKBF-00910 | [1] | PISTON 1 | |
| 35-3. | XKBF-00907 | [1] | Guide-POPET | |
| 35-4. | XKBF-00912 | [1] | SPRING 1 | |
| 35-5. | XKBF-00913 | [1] | Piston 2 | |
| 35-6. | XKBF-01248 | [1] | PLUG | |
| 35-7. | XKBF-01258 | [1] | PLUG | |
| 35-8. | XKBF-01259 | [1] | O-RING | |
| 35-9. | XKBF-01260 | [2] | Sleeve | |
| 35-10. | XKBF-01261 | [2] | PISTON-CHECK | |
| N35-11. | XKBF-01262 | [2] | C-RING | |
| 35-12. | XKBF-01263 | [2] | Baja bola | |
| 35-13. | XKBF-00931 | [1] | PLUG | |
| 35-14. | XKBF-01264 | [2] | PLUG | |
| 35-15. | XKBF-01265 | [5] | BOLT-SOCKET | |
| 34-16. | XKBF-00425 | [5] | PEMBAHASAN-PEMBUAT | |
| 40 | XKBF-01271 | [1] | Sleeve | |
| 41 | XKBF-01272 | [1] | Piston | |
| 48 | XKBF-01273 | [1] | SPRING-BC SPOOL | |
| 49 | XKBF-01274 | [1] | PLUG-BC SPOOL | |
| 56 | XKBF-00958 | [1] | O-RING | |
| 57 | XKBF-00937 | [3] | O-RING | |
| 61 | XKBF-00989 | [15] | O-RING | |
| 63 | XKBF-01280 | [1] | O-RING | |
| 64 | XKBF-01281 | [2] | O-RING | |
| 65 | XKBF-01282 | [2] | O-RING | |
| 66 | XKBF-01283 | [1] | O-RING | |
| 68 | XKBF-00416 | [6] | O-RING | |
| 69 | XKBF-00417 | [1] | O-RING | |
| 70 | XKBF-00962 | [1] | RING-BACK UP | |
| 73 | XKBF-01284 | [1] | BOLT-SOCKET | |
| 74 | XKBF-01285 | [1] | O-RING | |
| 77 | XKBF-01288 | [4] | BOLT-SOCKET | |
| 79 | XKBF-00425 | [8] | PEMBAHASAN-PEMBUAT | |
| 80 | XKBF-00427 | [4] | PEMBAHASAN-PEMBUAT | |
| 84 | XKBF-01293 | [2] | RELIEF VALVE-Overload | |
| N. | @ | [1] | Bagian-bagian yang tidak disuplai |
