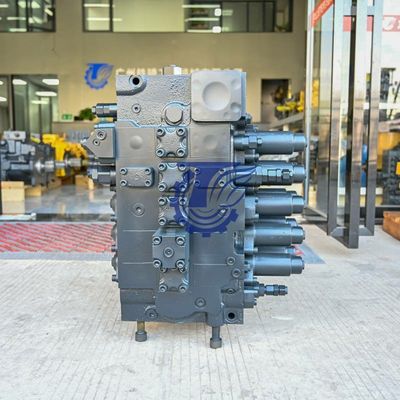

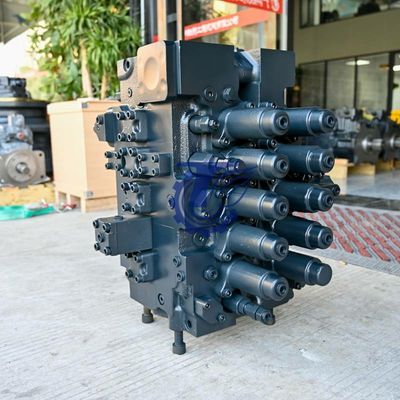

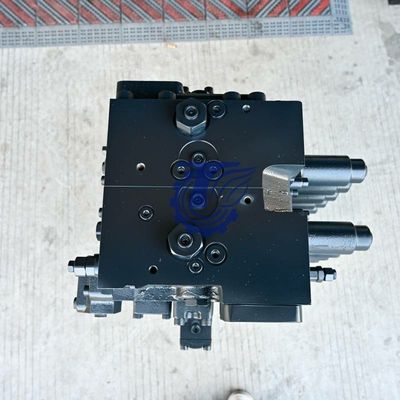

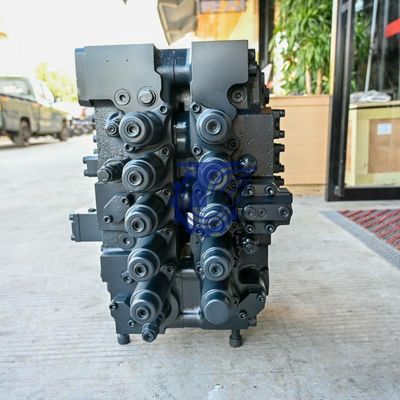

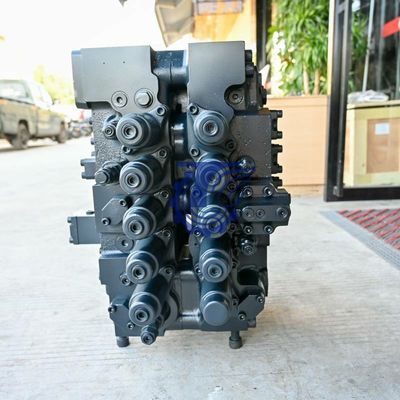

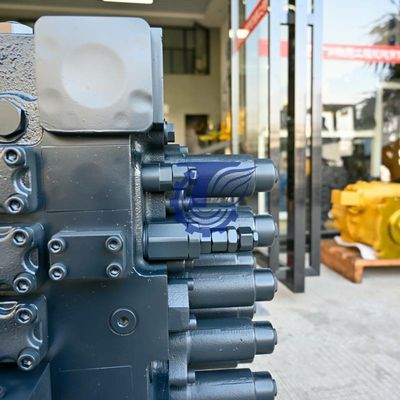

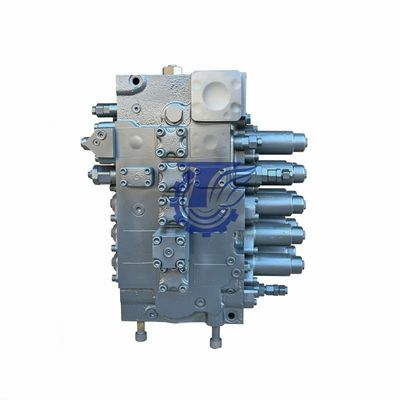

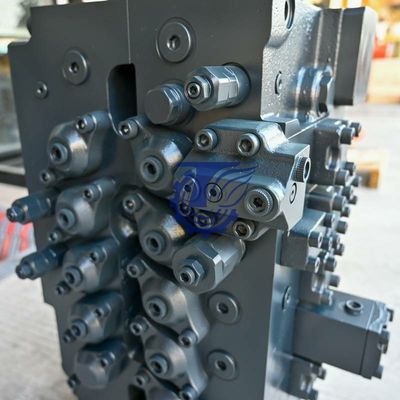

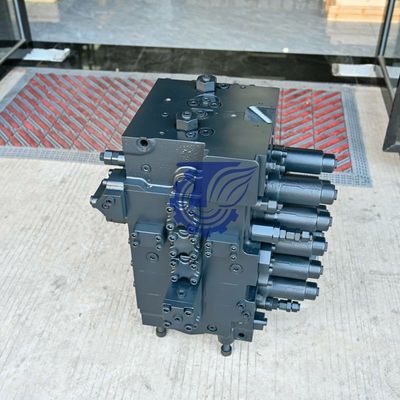

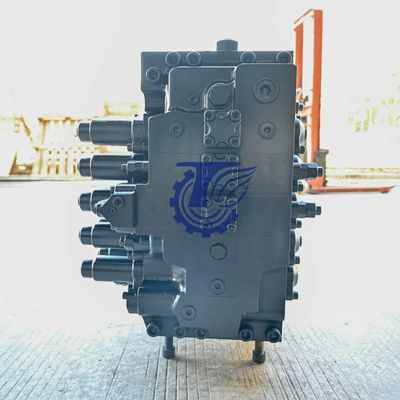

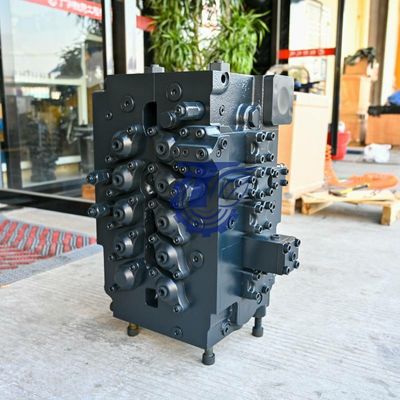

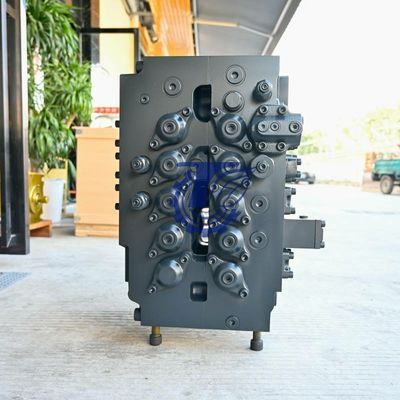

31QB-17100 31QB-17000 untuk Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S PART PARTS HYDRAULIC KONTROL HYDRAULIC Aftermarket Original
| Deskripsi produk |
||
| Model:31QB-17100 31QB-17000 untuk Hyundai R480LC-9 R480LC-9A R480LC-9S R520LC-9 R520LC-9A R520LC-9S PART PARTS HYDRAULIC KONTROL HYDRAULIC Aftermarket Original | kategori:Pompa hidrolik |
|
| Merek: TQ | Tempat Asal: Negara Lain |
|
| Kondisi: Asli & OEM |
Garansi: 12 bulan |
|
| MOQ: 1 PC |
Kapasitas Produksi: 1000 pcs /bulan |
|
| Standar atau tidak standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Tradeassurance |
|
| Waktu pengiriman: 1-3 hari (bergantung pada pesanan) |
Sarana transportasi: melalui laut, udara atau DHL/fedex/TNT/EMS |
|
| Menjamin:Kami akan memeriksa dan mengirim gambar terperinci kepada pembeli untuk konfirmasi | ||
| Pos. | Bagian no | Qty | Nama Bagian | Komentar |
| *. | 31QB-17000 | [1] | Katup kontrol utama | Tipe 2 |
| *. | 31QB-17100 | [1] | Katup kontrol utama | Tipe 3 |
| 12 | 31QB-17720 | [1] | Spool kit-bypass cut1 | |
| 15 | 31QB-17810 | [1] | Lengan regen memotong assy | Tipe 2 |
| 15 | 31QA-17811 | [1] | Lengan regen memotong assy | Tipe 3 |
| 17 | 31QB-17740 | [1] | Katup pelepas pelabuhan | |
| 17 | 31QB-17740K | [1] | Katup pelepas pelabuhan | |
| 18 | 31QB-17750 | [1] | Katup pelepas pelabuhan | |
| 18 | 31QB-17750K | [1] | Katup pelepas pelabuhan | |
| 19 | 31QB-17760 | [4] | Katup pelepas pelabuhan | |
| 19 | 31QB-17760K | [4] | Katup pelepas pelabuhan | |
| 20 | 31QB-17780 | [1] | Katup pelepas pelabuhan | |
| 20 | 31QB-17780K | [1] | Port Relief Valve Assy | |
| 21 | 31QB-17790 | [1] | Katup pelepas pelabuhan | |
| 22 | 31QB-17800 | [2] | Relief Valve-Negacon | |
| 24 | 31QB-17930 | [2] | Pasang Assy-by Pass | |
| 25 | 31QB-17940 | [1] | STEKER | |
| 26 | 31QB-17920 | [1] | STEKER | |
| 27 | 31N8-17550 | [1] | STEKER | |
| 28 | 31N4-18090 | [5] | STEKER | |
| 29 | 31N8-17500 | [11] | STEKER | |
| 30 | 31N4-18080 | [5] | STEKER | |
| 31 | 31N8-17540 | [1] | STEKER | |
| 41 | 31QB-18660 | [1] | SI KECIL | |
| 43 | 31QB-18680 | [1] | SI KECIL | |
| 46 | 31QB-18240 | [2] | MUSIM SEMI | |
| 49 | 31QB-18720 | [1] | MUSIM SEMI | |
| 50 | 31QB-18730 | [1] | MUSIM SEMI | |
| 51 | 31N8-18680 | [1] | STEKER | |
| 55 | S631-022004 | [4] | O-ring | |
| 56 | S631-010004 | [3] | O-ring | |
| 57 | S631-030004 | [10] | O-ring | |
| 61 | S109-201806 | [10] | Bolt-Socket | |
| 65 | S109-120206 | [4] | Bolt-Socket | |
| 66 | S107-120154 | [16] | Bolt-Socket | |
| 67 | S107-100154 | [12] | Bolt-Socket | |
| 68 | 31QB-18360 | [2] | Spring Seat-Bc | |
| 70 | 31N8-19460 | [5] | Cap-Dust | |
| 73 | 31QB-19620 | [4] | Cover 1-1/4 | |
| 74 | 31QB-19630 | [4] | Gasket 1-1/4 | |
| 75 | 31QB-19640 | [3] | Sampul 1 | |
| 76 | 31QB-19650 | [3] | Gasket 1 |
| Pos. | Bagian no | Qty | Nama Bagian | Komentar |
| *. | @ | [1] | Katup kontrol utama | Lihat 4050 |
| N2. | XKAY-01322 | [1] | Hosing-Valve, RH | |
| 3 | XKAY-01502 | [1] | Spool Assy-Arm 2 | |
| 4 | XKAY-01381 | [1] | Spool Assy-Bucket | |
| 5 | XKAY-01503 | [1] | Spool Assy-Boom 1 | |
| 6 | XKAY-01326 | [1] | Spool Assy-Travel | |
| 7 | XKAY-01327 | [1] | Spool assy-ts | |
| 12a. | XKAY-01332 | [4] | Spool cap-a | |
| 12b. | XKAY-01333 | [1] | Spool cap-b | |
| 13a. | XKAY-01334 | [4] | Spool Flange-A | |
| 13b. | XKAY-01335 | [1] | Spool Flange-B | |
| 14 | XKAY-01336 | [10] | O-ring | |
| 15 | XKAY-01337 | [1] | SI KECIL | |
| 16 | XKAY-01338 | [1] | MUSIM SEMI | |
| 17 | XKAY-01339 | [1] | Spacer | |
| 18 | XKAY-01340 | [1] | O-ring | |
| 19 | XKAY-01371 | [1] | Ring-back up | |
| 26 | XKAY-01348 | [2] | SI KECIL | |
| 27 | XKAY-01349 | [2] | SPRNG | |
| 29 | XKAY-01351 | [3] | SI KECIL | |
| 31 | XKAY-01353 | [4] | MUSIM SEMI | |
| 32 | XKAY-01354 | [3] | FLENS | |
| 33 | XKAY-01355 | [4] | O-ring | |
| 35 | XKAY-01357 | [1] | H/D Valve Assy | |
| 44 | XKAY-01367 | [2] | FLENS | |
| N49. | XKAY-01485 | [2] | Plug Assy | |
| N51. | XKAY-01497 | [24] | Kepala soket baut | |
| N52. | XKAY-01498 | [2] | Kepala soket baut | |
| 60 | XKAY-01375 | [1] | O-ring | |
| 63 | Xkay-00065 | [1] | STEKER | |
| N65. | XKAY-01499 | [12] | Kepala soket baut | |
| N. | @ | [1] | Tidak disediakan secara individual |
| Pos. | Bagian no | Qty | Nama Bagian | Komentar |
| *. | @ | [1] | Katup kontrol utama | Lihat 4055 |
| 2 | 31QB-17620 | [1] | Housing-P2 | |
| 3 | 31QB-17630 | [1] | Spool kit-travel | |
| 4 | 31QB-17640 | [1] | Spool Kit - ARM1 | Tipe 2 |
| 4 | 31QB-17641 | [1] | Kit Spool - Lengan 1 | Tipe 3 |
| 7 | 31QB-17670 | [1] | Spool Kit - Swing | |
| 9 | 31QB-17690 | [1] | Spool Kit - Boom 2 | Tipe 2 |
| 9 | 31QB-17691 | [1] | Spool Kit - Boom2 | Tipe 3 |
| 10 | 31QB-17700 | [1] | Spool Kit - Opsi | |
| N13. | 31QB-17960 | [1] | Logic Valve-Swing | |
| 13 | 31QB-17960K | [1] | Logic Valve-Swing | |
| 14 | 31QB-17980 | [1] | Memegang katup | |
| 16 | 31QB-17730 | [1] | Katup lega utama | |
| 16 | 31QB-17730K | [1] | Katup lega utama | |
| 23 | 31QB-17910 | [1] | Plug Signal Assy | |
| 28 | 31N4-18090 | [1] | STEKER | |
| 29 | 31N8-17500 | [1] | STEKER | |
| 32 | 31QB-17840 | [5] | Pilot Cap-Large | |
| 33 | 31QB-17850 | [5] | Pilot Cap-Small | |
| 34 | 31QB-17880 | [4] | Pemeriksaan Flange-Load | |
| 35 | 31QB-17890 | [2] | Flange-Mr | |
| 36 | 31QB-17900 | [2] | Flensa-opsi | |
| 37 | 31QB-18620 | [1] | Poppet-Mr | |
| 38 | 31QB-18630 | [3] | Pemeriksaan Loppet-Load | |
| 39 | 31QB-18640 | [1] | Pemeriksaan Loppet-Load | |
| 40 | 31QB-18650 | [1] | Poppet-Main H/D. | |
| 45 | 31QB-17990 | [1] | SPACER ASSY-MR | |
| 47 | 31QB-18700 | [1] | Spring-mr | |
| 48 | 31QB-18710 | [5] | Pemeriksaan Spring-Load | |
| 52 | S632-055004 | [10] | O-ring | |
| 53 | S631-041004 | [6] | O-ring | |
| 54 | S631-026004 | [4] | O-ring | |
| 56 | S631-010004 | [1] | O-ring | |
| 58 | Y171-024001 | [2] | O-ring | Tipe 2 |
| 58 | Y171-024004 | [2] | O-ring | Tipe 3 |
| 59 | S109-120556 | [4] | Bolt-Socket | |
| 60 | S109-100406 | [4] | Bolt-Socket | |
| 62 | S109-121206 | [4] | Bolt-Socket | |
| 63 | S109-120456 | [36] | Bolt-Socket | |
| 64 | S109-100456 | [8] | Bolt-Socket | |
| 66 | S107-120154 | [12] | Bolt-Socket | |
| 67 | S107-100154 | [20] | Bolt-Socket | |
| 69 | 31N8-19450 | [10] | Cap-Dust | |
| 70 | 31N8-19460 | [7] | Cap-Dust | |
| 71 | 31QB-19600 | [1] | Cover 2-1/2 | |
| 72 | 31QB-19610 | [1] | Gasket 2-1/2 | |
| 73 | 31QB-19620 | [2] | Cover 1-1/4 | |
| 74 | 31QB-19630 | [2] | Gasket 1-1/4 | |
| 75 | 31QB-19640 | [5] | Sampul 1 | |
| 76 | 31QB-19650 | [5] | Gasket 1 | |
| 77 | 31N8-19410 | [1] | PAPAN NAMA | |
| 78 | 31N8-19490 | [2] | Jenis sekrup paku keling |
