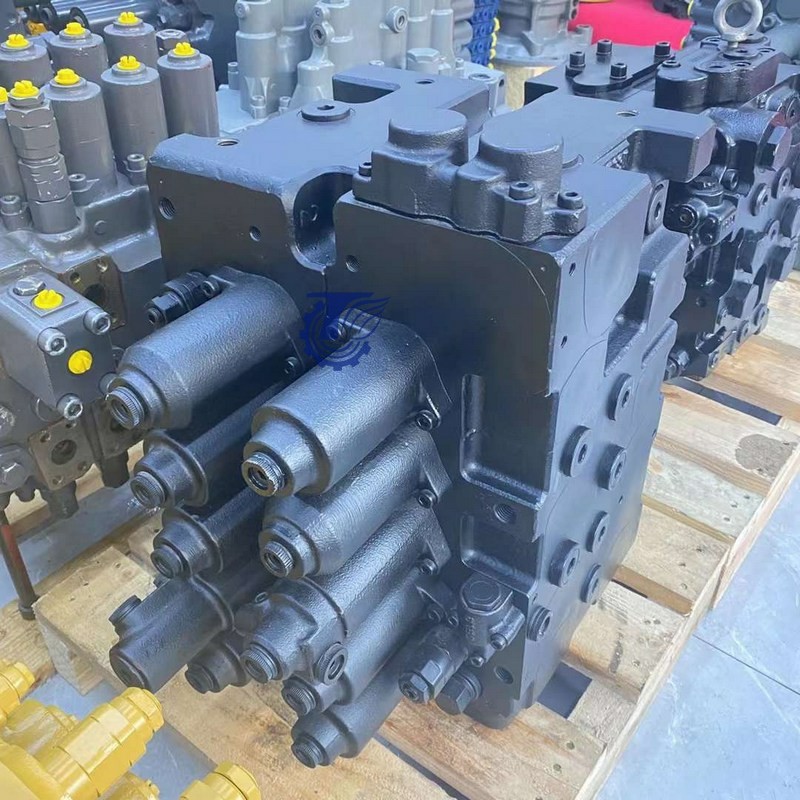

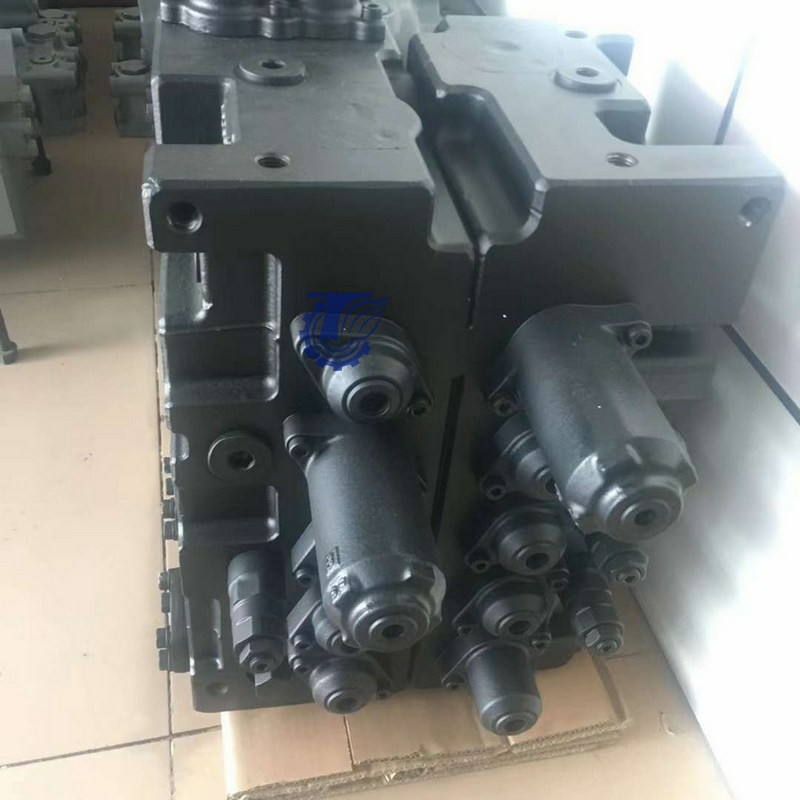

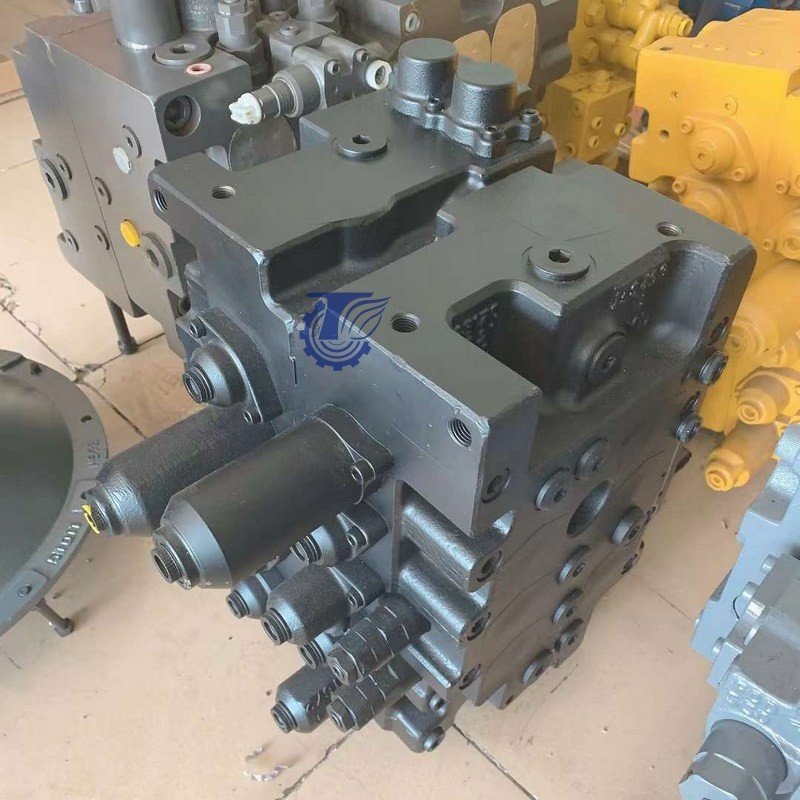

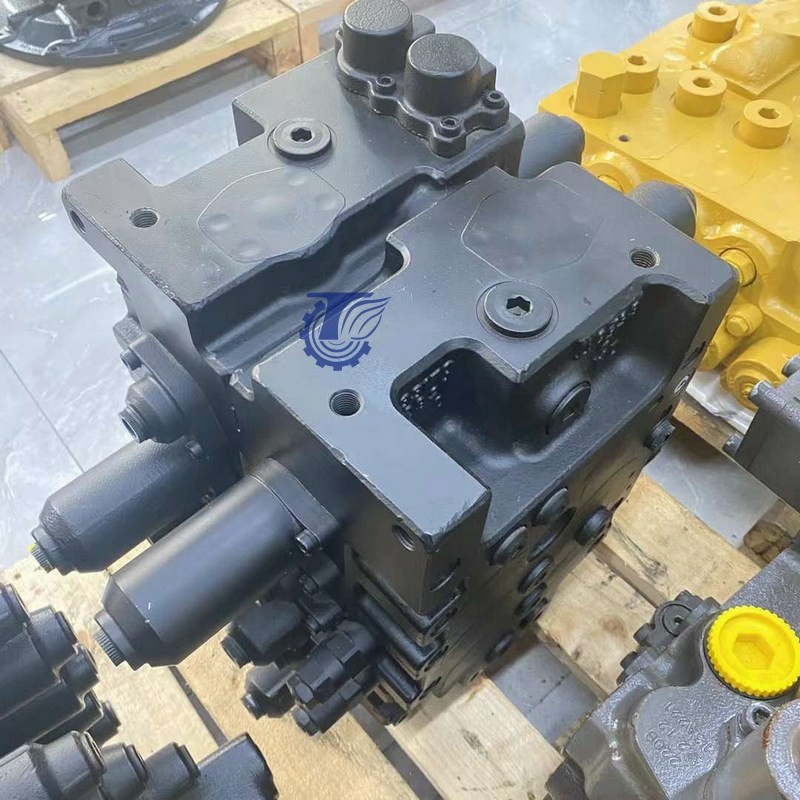

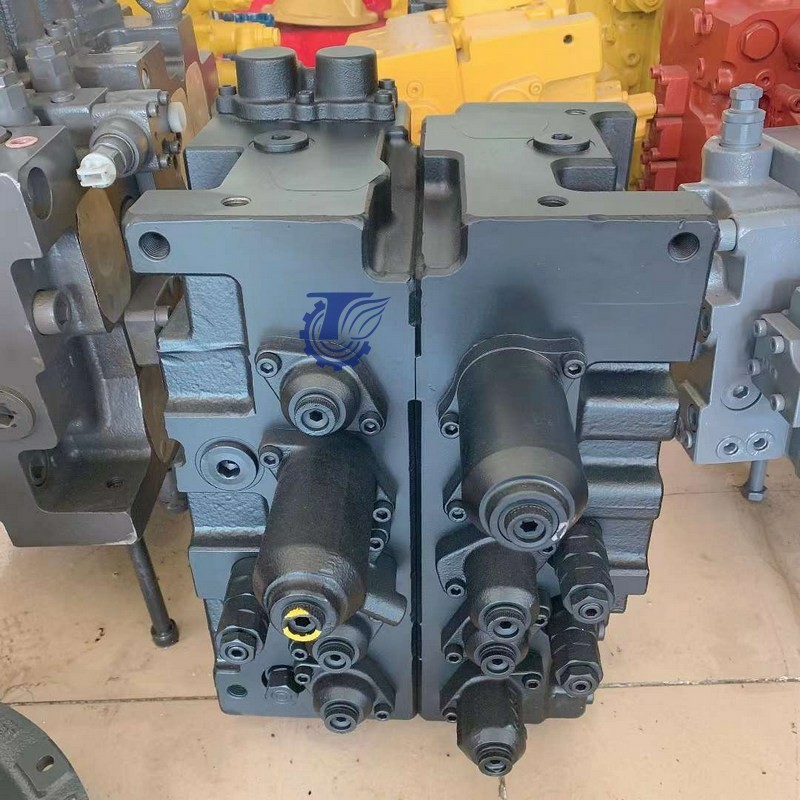

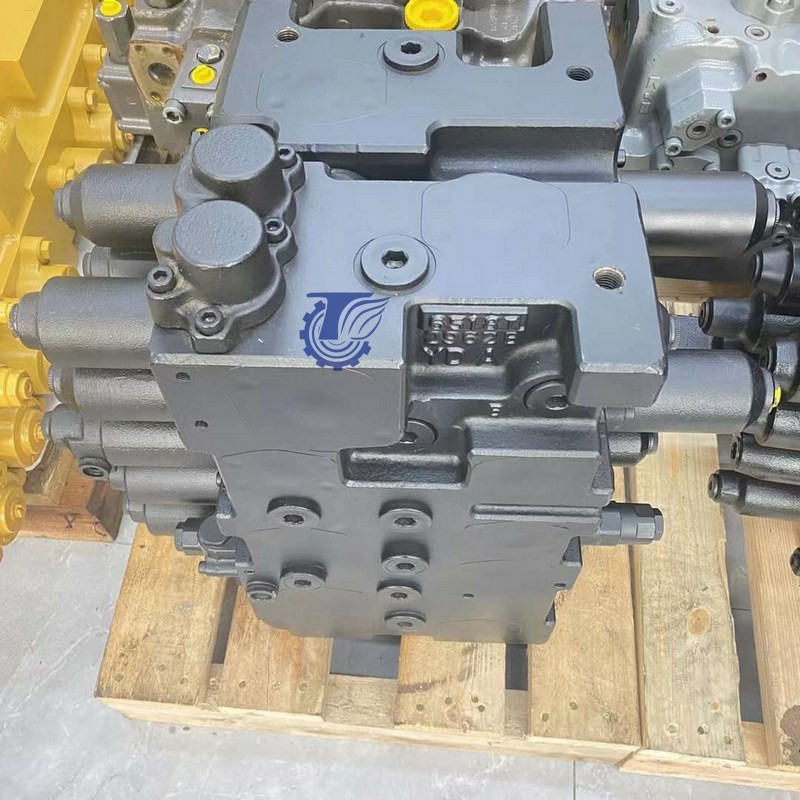

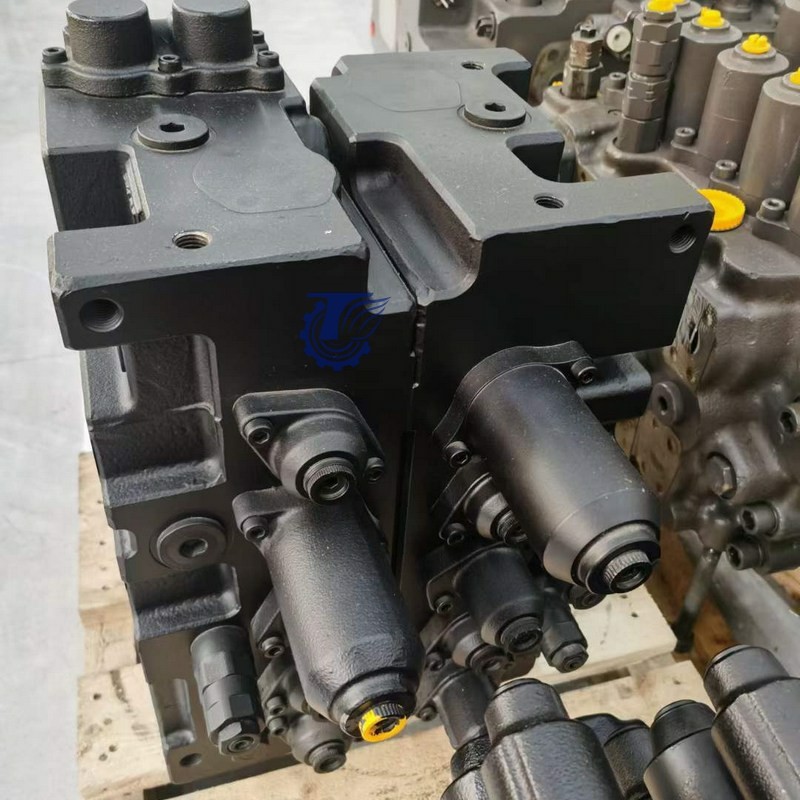

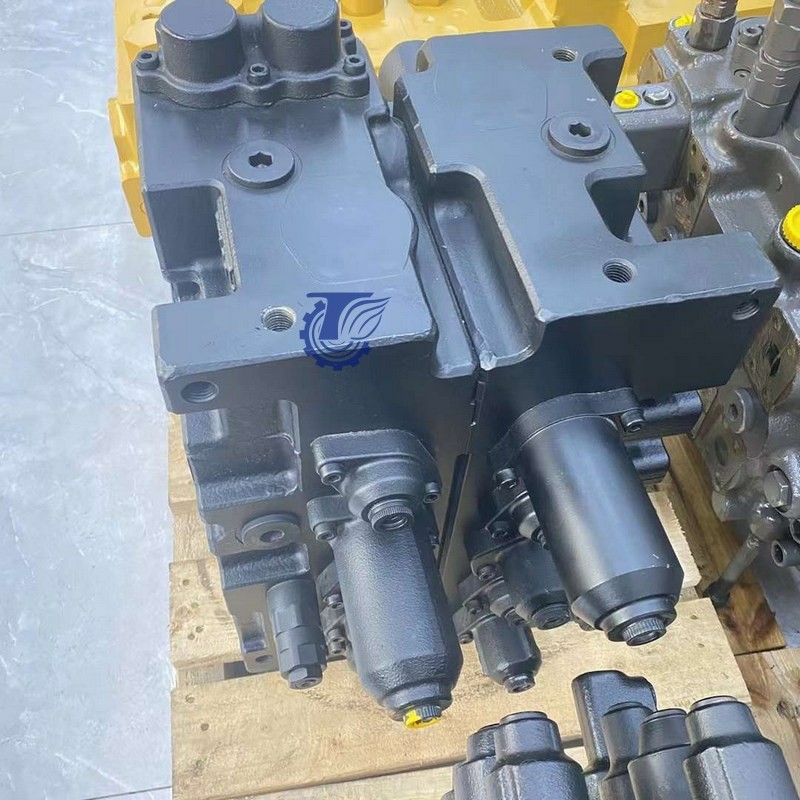

LC30V00028f1 LC30V00028f2 Kobelco SK330-8 SK350-8 Bagian Mesin Konstruksi Katup Kontrol Hidraulik
| DESKRIPSI PRODUK |
||
| Model:LC30V00028f1 LC30V00028f2 Kobelco SK330-8 SK350-8 Bagian Mesin Konstruksi Katup Kontrol Hidraulik | Kategori:Katup Kontrol Utama |
|
| Merek:TQ |
Tempat Asal:Negara Lain |
|
| Kondisi: |
Jaminan: 12 bulan |
|
| MOQ: 1 pcs |
Kapasitas produksi: 300 pcs/bulan |
|
| Standar atau Tidak Standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Jaminan Perdagangan |
|
| Waktu pengiriman: 3-7 hari (tergantung pesanan) |
Cara Pengangkutan: Di Laut, Udara atau DHL/FEDEX/TNT/EMS |
|
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| . . | LC30V00028F1 | [1] | Klep Kontrol | KOB Halaman 1 dari 5 Digantikan oleh nomor bagian: LC30V00028F5 |
| 101 | NSS | [1] | TIDAK DIJUAL SEPARAT | CON CASE |
| 102 | NSS | [1] | TIDAK DIJUAL SEPARAT | CON CASE |
| 154 | YN30V00001S154 | [3] | PLUG | KOB |
| 155 | YW30V00001S155 | [2] | PLUG | KOB 1/2" |
| 159 | NSS | [1] | TIDAK DIJUAL SEPARAT | CON PLUG |
| 160 | NSS | [5] | TIDAK DIJUAL SEPARAT | CON PLUG |
| 161 | ZD12P03800 | [1] | O-RING | KOB ID 37,70 ± 0,37 x OD 44,7mm |
| 162 | ZD12G03000 | [15] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB ID 29,4 ± 0,29 x OD 35mm |
| 163 | ZD12P01500 | [11] | O-RING | KOB ID 14,80 ± 0,20 x OD 19mm |
| 164 | ZD12P02400 | [19] | O-RING | KOB ID 23,70 ± 0,24 x OD 30mm |
| 169 | ZD12P01800 | [2] | O-RING | KOB ID 17,8mm x OD 20,2mm |
| 201 | YN30V00101S201 | [5] | Pertahankan | SM COVER |
| 202 | YN30V00101S202 | [4] | Pertahankan | SM COVER |
| 203 | YN30V00101S203 | [1] | Pertahankan | SM COVER |
| 204 | YN30V00101S204 | [1] | Pertahankan | SM COVER |
| 205 | YN30V00001S205 | [6] | PELUAR | KOB |
| 206 | YN30V00101S206 | [1] | Pertahankan | SM COVER |
| 207 | YN30V00101S207 | [1] | Pertahankan | SM COVER Digantikan oleh nomor bagian: YN30V00101S094 |
| 208 | LC30V00028S208 | [1] | PELUAR | KOB COVER |
| 209 | YN30V00101S209 | [1] | Pertahankan | SM COVER |
| 211 | YN30V00119F1 | [2] | VALVE | KOB ASSY, Kunci |
| 212 | YN30V00079S212 | [1] | PELAT | KOB |
| 213 | YN30V00101S213 | [1] | PELAT | KOB |
| 216 | YN30V00101S216 | [1] | Piston | SM |
| 261 | ZD12G05000 | [12] | O-RING,49.40mm ID x 55.60mm OD x 3.10mm | KOB ID 49,40 ± 0,45 x OD 55mm |
| 264 | ZD12G04000 | [10] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOB ID 39,40 ± 0,37 x OD 45mm |
| 266 | ZD12P00700 | [5] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro | KOB O-Ring -- ID 06.80 ± 0.16 x OD 10mm |
| 273 | ZS23C08025 | [40] | Sekrup, Kepala Soket Hex, M8 x 25mm | KOB M08x1.25x25mm |
| 274 | ZS23C12025 | [4] | Capscrew, Hex Socket Head, M12 x 52mm | KOB Screw M12x1.75x25mm |
| 275 | ZS23C12035 | [4] | Screw, Hex Socket Head, M12 x 35mm | KOB M12x1.75x35mm |
| 278 | ZS23C08035 | [5] | Sekrup, kepala Hex Socket, M8 x 35mm | KOB M08x1.25x35mm |
| 301 | LC30V00028S301 | [1] | SPOOL | KOB SPOOL ASSY Digantikan oleh nomor bagian: LC30V00028R100 |
| 302 | LC30V00028S302 | [1] | SPOOL | KOB SPOOL Digantikan oleh nomor bagian: LC30V00028R110 |
| 303 | LC30V00028S303 | [1] | SPOOL | KOB SPOOL Digantikan oleh nomor bagian: LC30V00028R120 |
| 304 | LC30V00028S304 | [1] | SPOOL | KOB SPOOL Digantikan oleh nomor bagian: LC30V00028R130 |
| 305 | YN30V00101S305 | [1] | SPOOL | SM Digantikan oleh nomor bagian: YN30V00101R140 |
| 306 | YN30V00101S306 | [2] | Kit Perbaikan | KOB SPOOL Digantikan oleh nomor bagian: YN30V00101R150 |
| 307 | LC30V00028S307 | [1] | Kit Perbaikan | KOB SPOOL Digantikan oleh nomor bagian: LC30V00028R160 |
| 308 | LC30V00028S308 | [1] | SPOOL | KOB SPOOL ASSY Digantikan oleh nomor bagian: YN30V00101S201, LC30V00034R220 |
| 309 | YN30V00101S309 | [1] | SPOOL | SM Digantikan oleh nomor bagian: YN30V00101R190 |
| 310 | YN30V00101S310 | [1] | SPOOL | SM Digantikan oleh nomor bagian: YN30V00101R200 |
| 311 | YN30V00101S311 | [1] | SPOOL | SM Digantikan oleh nomor bagian: YN30V00101R210 |
| 321 | YN30V00079S321 | [5] | SPRING | KOB |
| 322 | YN30V00079S322 | [4] | SPRING | KOB |
| 323 | 2436U1165S371 | [3] | SPRING | KOB |
| 324 | 2436U1165S372 | [3] | SPRING | KOB |
| 325 | YN30V00079S323 | [1] | SPRING | KOB |
| 326 | YN30V00101S326 | [1] | SPRING | SM |
| 327 | YN30V00101S327 | [3] | SPRING | SM |
| 328 | YN30V00101S328 | [1] | SPRING | SM |
| 329 | YN30V00101S329 | [3] | SPRING | SM |
| 331 | 2436U1443S332 | [24] | Tempat duduk SPRING | KOB |
| 333 | 2436U1165S336 | [12] | BOLT | KOB |
| 336 | 2436U1165S335 | [10] | Hentikan! | KOB |
| 339 | YN30V00001S339 | [1] | Hentikan! | KOB |
| 340 | YN30V00101S340 | [1] | CLIP | SM STOPPER |
| 511 | YN30V00101S341 | [11] | VALVEL HIDRAULIK | SM POPPET |
| 512 | YW30V00001S513 | [2] | POPPET | KOB |
| 514 | YN30V00101S514 | [2] | VALVEL HIDRAULIK | SM POPPET |
| 515 | 2436U1231S513 | [1] | POPPET | KOB |
| 517 | YN30V00101S517 | [1] | VALVEL HIDRAULIK | SM POPPET |
| 518 | YN30V00101S518 | [1] | VALVEL HIDRAULIK | SM POPPET |
| 521 | 2436U1165S521 | [11] | SPRING | KOB |
| 522 | YN30V00101S522 | [2] | SPRING | SM |
| 523 | YN30V00089S523 | [1] | SPRING | KOB |
| 524 | YN30V00001S524 | [2] | SPRING | KOB |
| 527 | YN30V00101S527 | [1] | SPRING | SM |
| 528 | YN30V00101S528 | [1] | SPRING | SM |
| 551 | YN30V00001S551 | [12] | PLUG | KOB |
| 552 | YW30V00001S556 | [2] | PLUG | KOB |
| 556 | YN30V00001S556 | [3] | PLUG | KOB |
| 559 | LC30V00028S559 | [1] | PLUG | KOB |
| 560 | LC30V00028S560 | [1] | O-RING | KOB |
| 562 | ZD12P02000 | [2] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB ID 19,80 ± 0,22 x OD 24mm |
| 601 | LC22V00011F1 | [1] | VALVEL HIDRAULIK | SM VALVE ASSY, MAIN RELIEF SEE (HC010) |
| 602 | YN22V00002F1 | [3] | VALVE | KOB Overload SEE (HC015) |
| 603 | YN22V00002F9 | [3] | VALVE | KOB SEE (HC015) |
| 604 | YN30V01062P1 | [2] | PLUG | SM ASSY |
| 606 | YN30V00120F1 | [2] | VALVE | KOB ASSY, BYPASS, SEE (HC030) Digantikan oleh nomor bagian: YN30V00120F2 |
| 973 | ZS23C14160 | [8] | Sekrup, Kepala Soket Hex, M14 x 160mm | KOB Screw -- M14x2.0x160mm |
| 974 | ZS23C14140 | [2] | Sekrup, Kepala Soket Hex, M14 x 140mm | KOB M14x2.0x140mm |
| 977 | NSS | [1] | TIDAK DIJUAL SEPARAT | CON NAME PLATE (Plat Nama) |
| 978 | NSS | [2] | TIDAK DIJUAL SEPARAT | PIN CON |
| K. | LC30V00028R100 | [1] | Kit Perbaikan | KOB KONSISTEN dari POEM 301X1, 321X1, 322X1, 331X2, 333X1, 336X1 |
| K. | LC30V00028R110 | [1] | Kit Perbaikan | KOB KOMPOSISI dari item 302X1, 321X1, 322X1, 331X2, 333X1, 336X1 |
| K. | LC30V00028R120 | [1] | Kit Perbaikan | KOB KONSISTEN PUTER 303X1, 321X1, 322X1, 331X2, 333X1, 336X1 |
| K. | LC30V00028R130 | [1] | Kit Perbaikan | KOB KOMPOSISI dari item 304X1, 321X1, 322X1, 331X2, 333X1, 336X1 |
| K. | YN30V00101R140 | [1] | Kit Perbaikan | KOB KOMPOSISI dari item 305X1, 325X1, 326X1, 331X2, 333X1, 339X1 |
| K. | YN30V00101R150 | [1] | Kit Perbaikan | KOB KONSISTEN PUTER 306X1, 323X1, 324X1, 331X2, 333X1, 336X1 |
| K. | LC30V00028R170 | [1] | Kit Perbaikan | KOB KOMPOSISI BAB 307X1, 327X1, 329X1, 331X2, 333X1, 336X1 Digantikan oleh nomor bagian: YN30V00101S201, LC30V00034R220 |
| K. | LC30V00028R180 | [1] | Kit Perbaikan | KOB KOMPOSISI dari item 308X1, 321X1, 328X1, 331X2, 333X1, 340X1 |
| K. | YN30V00101R190 | [1] | Kit Perbaikan | KOB KOMPOSISI dari item 309X1, 327X1, 329X1, 331X2, 333X1, 336X1 |
| K. | YN30V00101R200 | [1] | Kit Perbaikan | KOB KONSISTEN PUTER 310X1, 327X1, 329X1, 331X2, 333X1, 336X1 |
| K. | YN30V00101R210 | [1] | Kit Perbaikan | KOB KOMPOSISI dari item 311X1, 323X1, 324X1, 331X2, 333X1, 336X1 |
