| DESKRIPSI PRODUK |
||

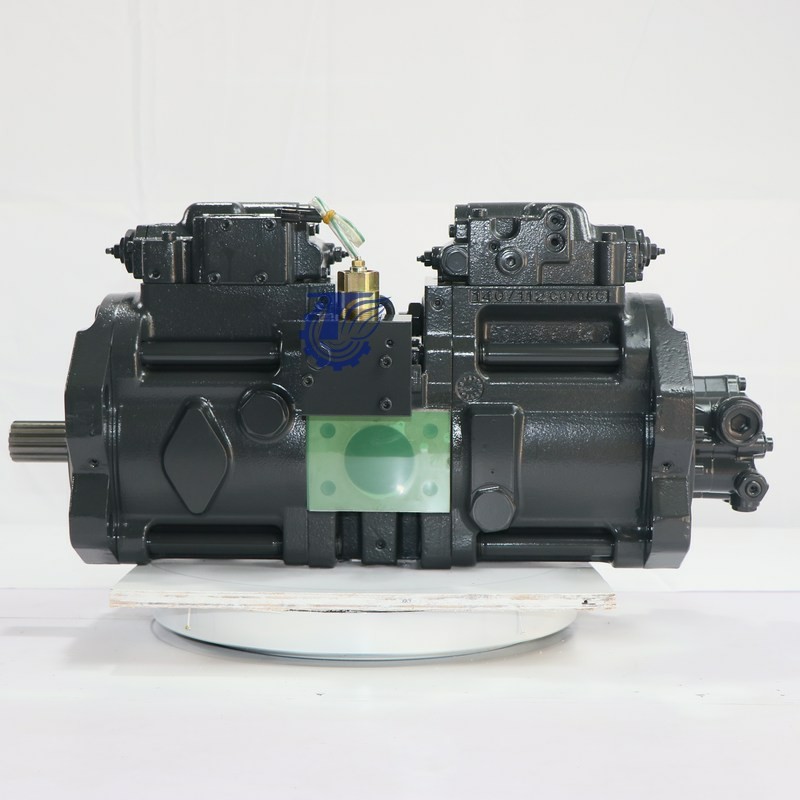

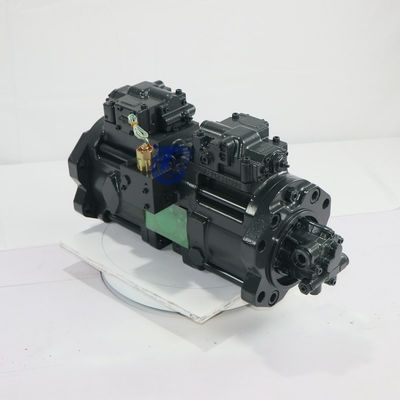

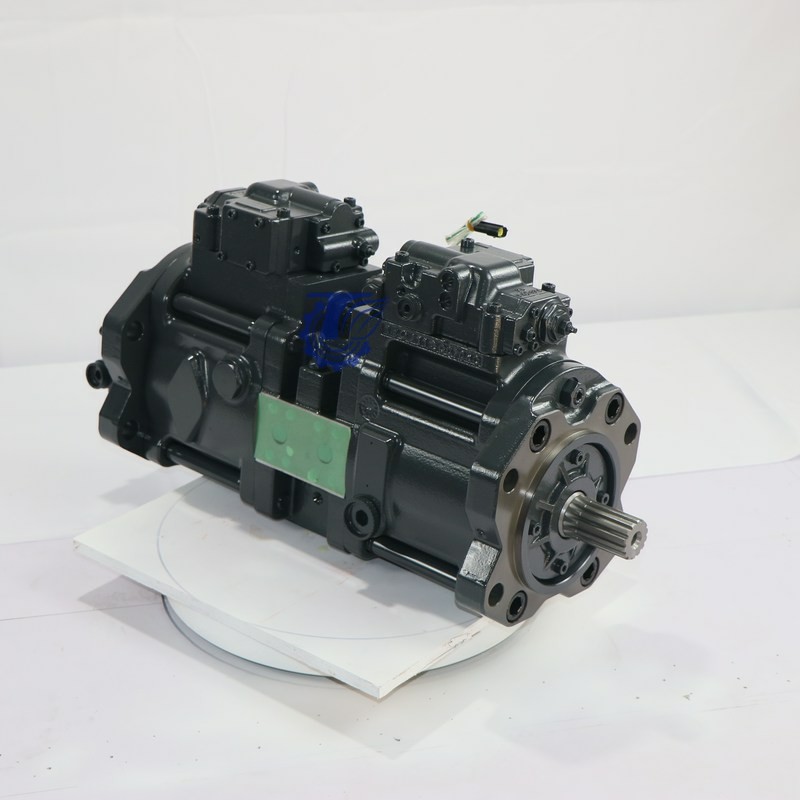

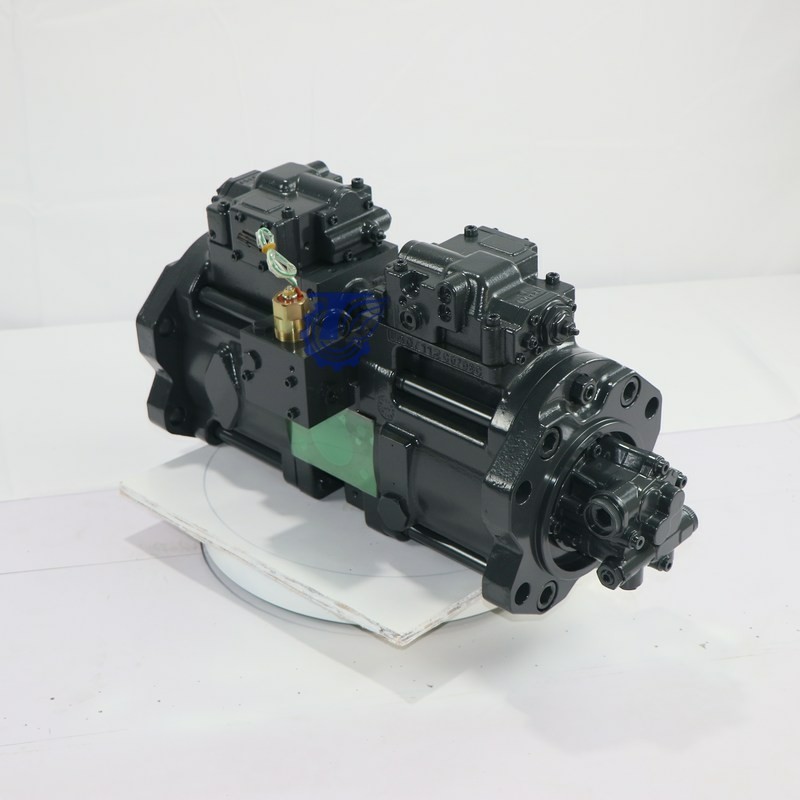

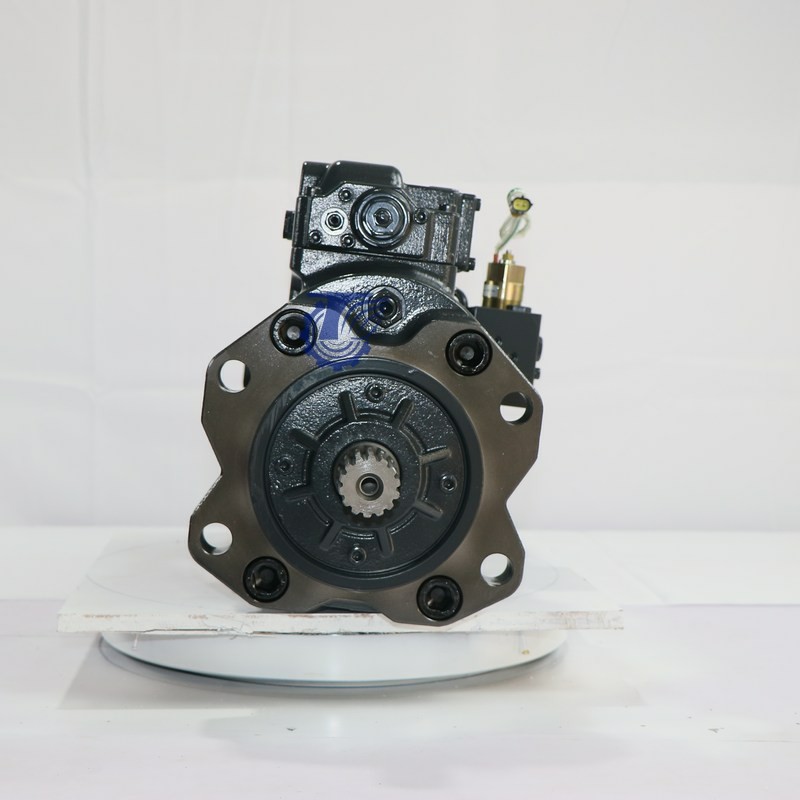

| Model:K3V112DT-9C14 pompa utama hidrolik K3V112 31Q6-10010 31Q610010 untuk pompa excavator modern R210LC9 R220LC9A R235LCR9 R235LCR9A | Kategori:Pompa hidraulik |
|
| Merek:KAWASAK |
Tempat Asal:Negara Lain |
|
| Kondisi: Asli & OEM |
Garansi: 12 bulan |
|
| MOQ: 1 pcs |
Kapasitas produksi: 1000 pcs/bulan |
|
| Standar atau Tidak Standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Jaminan Perdagangan |
|
| Waktu pengiriman: 1-3 hari (tergantung pesanan) |
Cara Pengangkutan: Di Laut, Udara atau DHL/FEDEX/TNT/EMS |
|
| Jaminan:Kami akan memeriksa dan mengirim gambar rinci kepada pembeli untuk konfirmasi | ||
| Bagian pada kelompok PEMPOM MAIN: | |||
| Posisi. | Bagian No. | Qty | Nama bagian |
| * | 31Q6-10010 | [1] | Pompa Utama |
| N*-1. | K3V112DTP1H9R | [1] | Unit Pompa Utama |
| 111 | XJBN-00077 | [1] | SHAFT-DRIVE,FR |
| 113 | XJBN-00078 | [1] | SHAFT-DRIVE,RR |
| 116 | XJBN-01213 | [1] | Gear-1ST |
| 123 | XJBN-00950 | [2] | Berkas-Roller |
| 124 | XJBN-00786 | [2] | Jaring bantalan |
| 127 | XJBN-00081 | [4] | SPACE-LAYER |
| NS141. | XJBN-00067 | [2] | Blok-silinder |
| NS151. | XJBN-01032 | [18] | Piston |
| NS152. | XJBN-01214 | [18] | Sepatu |
| 153 | XJBN-00945 | [2] | PLATE-SET |
| 156 | XJBN-00083 | [2] | BUSHING-SFERIK |
| 157 | XJBN-00084 | [18] | SPRING-CYLINDER |
| 211 | XJBN-00085 | [2] | Sepatu plat |
| NS212. | XJBN-00070 | [2] | Plat-Swash |
| NS214. | XJBN-00071 | [2] | BUSHING-TILTING |
| 251 | XJBN-00086 | [2] | Dukungan |
| 261 | XJBN-00087 | [1] | COVER ((F) - SEAL |
| 271 | XJBN-01034 | [2] | Casing-Pump |
| 312 | XJBN-00940 | [1] | BLOCK-VALVE |
| NS313. | XJBN-01035 | [1] | PEMBALANG PLATE-VALVE ((R) |
| NS314. | XJBN-01036 | [1] | VALVEL PLATE ((L) |
| N326. | XJBN-00937 | [1] | PELUAR |
| 401 | XJBN-00090 | [8] | SCREW-HEX SOC HD |
| 406 | XJBN-00355 | [4] | SCREW-HEX SOC HD |
| 414 | XJBN-00160 | [4] | SUKIT-SUKIT |
| 466 | XJBN-00356 | [2] | PLUG-VP |
| 467 | XJBN-00936 | [2] | PLUG |
| 468 | XJBN-00031 | [4] | PLUG |
| 490 | XJBN-00032 | [27] | PLUG |
| NS531. | XJBN-00358 | [2] | PING-TILT |
| 532 | XJBN-00955 | [2] | PISTON-SERVO |
| 534 | XJBN-01037 | [2] | STOPPER ((L) |
| 535 | XJBN-00093 | [2] | STOPPER (S) |
| NS541. | XJBN-00859 | [4] | SEAT |
| NS543. | XJBN-00860 | [2] | Stopper 1 |
| NS544. | XJBN-00861 | [2] | Stopper 2 |
| NS545. | XJBN-00359 | [4] | Baja bola |
| NS548. | XJBN-00360 | [2] | PIN-feed kembali |
| 702 | XJBN-00918 | [2] | O-RING |
| 710 | XJBN-00095 | [2] | O-RING |
| 717 | XJBN-00096 | [4] | O-RING |
| 724 | XJBN-00361 | [16] | O-RING |
| 725 | XJBN-00362 | [6] | O-RING |
| 726 | XJBN-00233 | [2] | O-RING |
| 728 | XJBN-00363 | [4] | O-RING |
| 732 | XJBN-00912 | [2] | O-RING |
| 774 | XJBN-00962 | [1] | SEAL-OIL |
| 789 | XJBN-00099 | [2] | RING-BACK UP |
| 792 | XJBN-00100 | [2] | RING-BACK UP |
| 806 | XJBN-00101 | [2] | NUT-HEX |
| 808 | XJBN-00364 | [2] | NUT-HEX |
| 824 | XJBN-00102 | [2] | RING-SNAP |
| 885 | XJBN-00103 | [2] | PLAT PIN-VALVE |
| 886 | XJBN-00365 | [4] | Pin-SPRING |
| 901 | XJBN-00104 | [2] | BOLT-EYE |
| 953 | XJBN-00105 | [2] | SETUAN SELINGKAP |
| 954 | XJBN-00106 | [2] | SETUAN SELINGKAP |
| 981 | XJBN-00156 | [1] | NAME PLATE (Plat Nama) |
| 983 | XJBN-00341 | [2] | PIN |
| *-2. | XJBN-01553 | [2] | Pengatur ASSY |
| *-3. | XJBN-01196 | [1] | Pompa Girasi |
| *-4. | XJBN-00014 | [1] | EPPR VALVE ASSY |
| 11 | XJBN-01212 | [2] | Piston Sub ASSY |
| 13 | XJBN-01040 | [1] | Silinder ASSY-RH |
| 14 | XJBN-01041 | [1] | Silinder ASSY-LH |
| 30 | XJBN-00069 | [2] | SWASH PLATE SUB ASSY |
| 41 | XJBN-00072 | [2] | Periksa klep ASSY 1 |
| 42 | XJBN-00075 | [2] | VALVE CEK ASSY 2 |
| 530 | XJBN-00366 | [2] | SELINGKAP PIN ASSY |
Pompa hidraulik excavator:
| Hyundai | R110-7 | K3V63DT-1R0R-9N1S-1C |
| Hyundai | R130LC-3 | K3V63DT-1R0R-9N01-2A |
| Hyundai | R140LC-7 | K3V63DT-1R0R-9C0S-1D |
| Hyundai | R160LC-3 | K3V63DT-1R0R-9N1S-B |
| Hyundai | R210LC-3 | K3V112DT-1RER-9C39-1 |
| Hyundai | R210LC-7 | K3V112DT-1CER-9C32-1 |
| Hyundai | R210LC-7A | K3V112DT-1LHR-9C32 |
| Hyundai | R220LC-9S | K3V112DT-1DFR-9N62 |
| Hyundai | R250LC | K3V112DT-1RER-9C39-1 |
| Hyundai | R250LC-7 | K3V112DT-1CER-9C32-2B |
| Hyundai | R250LC-7A | K3V112DT-1LHR-9C52 |
| Hyundai | R290LC-3 | K3V140DT-1R2R-9N29-A |
| Hyundai | R290LC-7 | K3V140DT-1CER-9C12-D |
| Hyundai | R290LC-7 | K5V140DTP1K9R-9C12-L |
| Hyundai | R290LC-7A | K5V140DTP1J9R-9C12-1AL |
| Hyundai | R290NLC-7A | K5V140DTP1J9R-9C12-1AL |
| Hyundai | R300LC-9 | K5V140DTP1E9R-9N02-1 |
| Hyundai | R300LC-9A | K5V140DTP1E9R-9N02-1 |
| Hyundai | R305LC-7 | K5V140DTP1J9R-9C12-AL |
| Hyundai | R320LC-7 | K3V180DT-1RER-9C69-DL |
| Hyundai | R320LC-7A | K3V180DT-1RER-9C69-DL |
| Hyundai | R350 | K3V180DTH1H1R-9N4S-1T |
| Hyundai | R360LC-7 | K3V180DTH1P0R-9C0S |
| Hyundai | R360LC-7A | K3V180DTH1P0R-9C0S-1AL |
| Hyundai | R450LC-7 | K5V200DTH10JR-9C0Z-VT |
| Hyundai | R500LC-7 | K5V200DTH10JR-9C0Z-VT |
| Hyundai | R3000LC-7 | K5V140DTP1H9R-9C12 |
