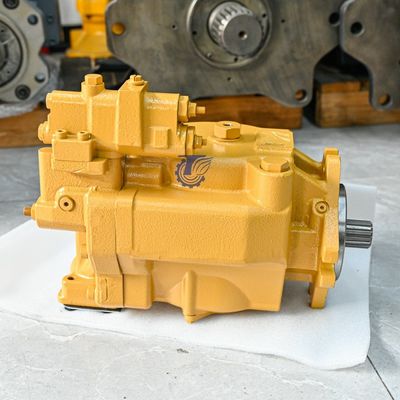

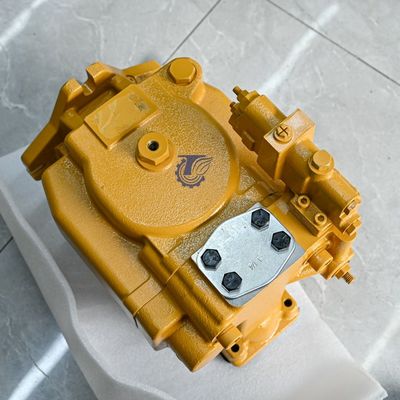

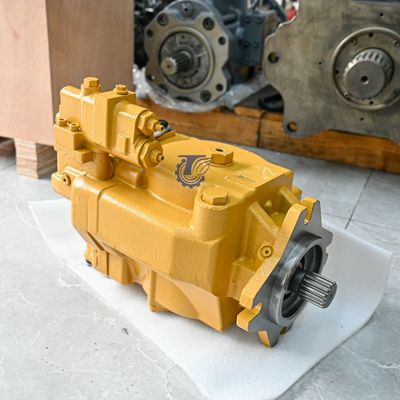

1078136 CA1078136 107-8136 Untuk CAT D6M TRACK-TYPE TRACTOR Pompa utama hidraulik Pompa piston Pompa ASSY Pompa GP-PISTON Pasar suku cadang Kualitas tinggi Asli
| DESKRIPSI PRODUK |
||
| Model:1078136 CA1078136 107-8136 Untuk CAT D6M TRACK-TYPE TRACTOR Pompa utama hidraulik Pompa piston Pompa ASSY Pompa GP-PISTON Pasar suku cadang Kualitas tinggi Asli | Kategori:Pompa hidraulik |
|
| Merek: CAT |
Tempat Asal:Negara Lain |
|
| Kondisi: Asli & OEM |
Garansi: 12 bulan |
|
| MOQ: 1 pcs |
Kapasitas produksi: 1000 pcs/bulan |
|
| Standar atau Tidak Standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Jaminan Perdagangan |
|
| Waktu pengiriman: 1-3 hari (tergantung pesanan) |
Cara Pengangkutan: Di Laut, Udara atau DHL/FEDEX/TNT/EMS |
|
|
Jaminan:Kami akan memeriksa dan mengirim gambar rinci kepada pembeli untuk konfirmasi |
||
| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| 1 | 1P-3381 | [1] | BRACKET | |
| 2 | 3W-2647 | [3] | SPACER (13.5X30X10-MM THK) | |
| 3 | 8T-6703 | [4] | KELAMP-HOSE | |
| 4 | 9T-3926 Y | [1] | Filter & MTG GP-HYDRAULIC | |
| 5 | 107-8136 Y | [1] | Pompa GP-Piston | |
| 6 | 111-8871 | [1] | TUBE AS | |
| 7 | 111-8872 | [1] | TUBE AS | |
| 8 | 111-9642 | [1] | TUBE AS | |
| 9 | 111-9644 I | [1] | Selang AS | |
| 10 | 111-9645 I | [1] | Selang AS | |
| 11 | 111-9646 I | [1] | Selang AS | |
| 12 | 111-9647 | [1] | BRACKET | |
| 13 | 123-8630 | [1] | TUBE AS | |
| 14 | 5P-1292 BE | Selang | ||
| 15 | 148-8306 | [1] | Adapter AS | |
| 5P-5777 | [1] | Adaptor-O-Ring | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 16 | 148-8330 | [1] | Konektor AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 8T-0198 | [1] | Konektor | ||
| 17 | 148-8335 | [1] | Konektor AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-8635 | [1] | Konektor | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 18 | 148-8340 | [1] | Konektor AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8639 | [1] | Konektor | ||
| 19 | 148-8355 | [1] | Elbow AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-9005 | [1] | Lempung | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 20 | 148-8361 | [1] | Elbow AS (90-DEG) | |
| 3J-7354 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-9200 | [1] | Lempung | ||
| 21 | 148-8364 | [1] | Elbow AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8625 | [1] | Lempung | ||
| 22 | 148-8367 | [1] | Elbow AS | |
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-9850 | [1] | Lempung | ||
| 23 | 148-8370 | [1] | Elbow AS | |
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-9851 | [1] | Lempung | ||
| 24 | 148-8378 | [1] | Elbow AS | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-8724 | [1] | Lempung | ||
| 25 | 148-8433 | [1] | TEE AS | |
| 6V-8397 | [2] | SEAL-O-RING | ||
| 6V-9836 | [1] | TEE-SWIVEL | ||
| 26 | 165-4934 | [1] | PLUG AS | |
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-9508 | [1] | PLUG (11/16-16-THD) | ||
| 27 | 1P-3704 | [1] | SEAL-REKTANGULER | |
| 28 | 1P-3707 | [2] | SEAL-REKTANGULER | |
| 29 | 1P-5763 | [2] | Flang-Half | |
| 30 | 1S-0994 | [1] | CLIP (Loop) | |
| 31 | 1S-1015 | [4] | CLIP | |
| 32 | 4F-7391 | [1] | SEAL-O-RING | |
| 33 | 4J-0520 | [1] | SEAL-O-RING | |
| 34 | 5F-3106 | [1] | SEAL-O-RING | |
| 35 | 5P-4116 | [4] | WASHER-HARD (8.8X20.5X2-MM THK) | |
| 36 | 5P-6863 | [1] | CLIP (TAB) | |
| 37 | 5P-6864 | [1] | CLIP (SLOT) | |
| 38 | 5P-7468 | [1] | CLIP (SLOT) | |
| 39 | 5P-7469 | [1] | CLIP (TAB) | |
| 40 | 6J-7035 | [1] | Flang | |
| 41 | 7D-7233 | [1] | CLIP (Loop) | |
| 42 | 7L-6326 | [1] | CLIP | |
| 43 | 7S-3916 | [1] | CLIP (TAB) | |
| 44 | 7S-3919 | [1] | CLIP (SLOT) | |
| 45 | 8C-3206 | [2] | Flang-Half | |
| 46 | 8S-0948 | [1] | CLIP | |
| 47 | 8T-2525 | [1] | GROMMET | |
| 48 | 8T-2561 | [5] | WASHER-HARD (10.5X28.5X5-MM THK) | |
| 49 | 8T-4121 | [13] | WASHER-HARD (11X21X2.5-MM THK) | |
| 50 | 8T-4133 M | [5] | NUT (M10X1.5-THD) | |
| 51 | 8T-4136 M | [3] | BOLT (M10X1.5X25-MM) | |
| 52 | 8T-4139 M | [3] | BOLT (M12X1.75X30-MM) | |
| 53 | 8T-4185 M | [4] | BOLT (M10X1.5X50-MM) | |
| 54 | 8T-4186 M | [2] | BOLT (M10X1.5X40-MM) | |
| 55 | 8T-4194 M | [4] | BOLT (M12X1.75X50-MM) | |
| 56 | 8T-4195 M | [4] | BOLT (M10X1.5X30-MM) | |
| 57 | 8T-4223 | [8] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 58 | 8T-4244 M | [4] | NUT (M12X1.75-THD) | |
| 59 | 8T-4908 M | [4] | BOLT (M8X1.25X25-MM) | |
| 60 | 9S-1350 | [2] | CLIP |
