1127913 CA1127913 112-7913 0R7663 Untuk CAT 854G 992G wheel loader pompa utama hidraulik pompa piston pompa ASSY pompa GP-piston aftermarket berkualitas tinggi asliAku tidak tahu.
| DESKRIPSI PRODUK |
||
| Model:1127913 CA1127913 112-7913 0R7663 Untuk CAT 854G 992G wheel loader pompa utama hidraulik pompa piston pompa ASSY pompa GP-piston aftermarket berkualitas tinggi asli | Kategori:Pompa hidraulik |
|
| Merek: CAT |
Tempat Asal:Negara Lain |
|
| Kondisi: Asli & OEM |
Garansi: 12 bulan |
|
| MOQ: 1 pcs |
Kapasitas produksi: 1000 pcs/bulan |
|
| Standar atau Tidak Standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Jaminan Perdagangan |
|
| Waktu pengiriman: 1-3 hari (tergantung pesanan) |
Cara Pengangkutan: Di Laut, Udara atau DHL/FEDEX/TNT/EMS |
|
|
Jaminan:Kami akan memeriksa dan mengirim gambar rinci kepada pembeli untuk konfirmasi |
||

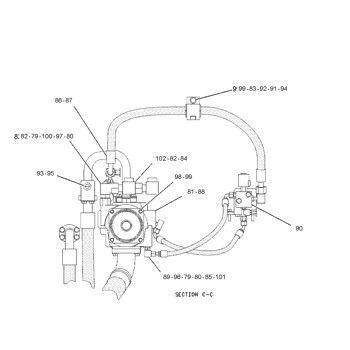

| Posisi. | Bagian No. | Qty | Nama bagian |
| 1 | 1P-3704 | [3] | SEAL-REKTANGULER |
| 2 | 1P-3705 | [3] | SEAL-REKTANGULER |
| 3 | 2M-9780 | [2] | SEAL-O-RING |
| 4 | 2W-5331 | [1] | BRACKET |
| 5 | 3J-1907 | [5] | SEAL-O-RING |
| 6 | 4L-9337 | [3] | Bolt (3/8-16X1.5-IN) |
| 7 | 6V-9854 | [1] | Elbow (SWIVEL) |
| 8 | 5K-9090 | [3] | SEAL-O-RING |
| 9 | 5P-1046 | [1] | Konektor |
| 10 | 6E-1454 | [1] | VALVE GP-CHECK (COOLER BYPASS) |
| 11 | 6E-4576 Y | [1] | Motor GP-Piston (penggerak kipas angin) |
| 12 | 6V-0852 | [1] | CAP-DUST |
| 6V-3965 | [1] | FITNING (MEMPULANGKAN SEKARANG) | |
| 13 | 8T-4193 M | [4] | BOLT (M16X2X50-MM) |
| 14 | 8T-7058 M | [8] | Kepala Bolt-Socket (M12X1.75X140-MM) |
| 15 | 8T-5389 | [1] | Lempung |
| 16 | 6V-8926 | [1] | Adaptor |
| 17 | 6V-9746 | [3] | SEAL-O-RING |
| 18 | 7M-8485 | [4] | SEAL-O-RING |
| 19 | 7X-2459 | [1] | Adapter-TEE |
| 20 | 7X-3392 | [8] | WASHER-HARD (13.5X22.5X3-MM THK) |
| 21 | 8T-6868 M | [4] | BOLT (M12X1.75X80-MM) |
| 22 | 8T-3312 | [1] | TEE |
| 23 | 8T-6907 | [1] | VALVE-BALL |
| 24 | 8T-7876 | [1] | SEAL-O-RING |
| 25 | 9S-4181 | [1] | PLUG (1-5/16-12-THD) |
| 26 | 9S-4190 | [1] | Plug-O-RING (7/8-14-THD) |
| 27 | 9U-1381 | [2] | MANIFOLD |
| 28 | 101-9012 Y | [1] | VALVE GP-MAKEUP (MENCEPAT KAVITASI FAN MOTOR) |
| 29 | 107-0586 | [1] | Lempung |
| 30 | 8T-4956 M | [4] | BOLT (M12X1.75X35-MM) |
| 31 | 6V-8397 | [1] | SEAL-O-RING |
| 32 | 115-5324 I | [1] | Selang AS |
| 33 | 115-7796 | [1] | TUBE AS |
| 34 | 115-8168 I | [1] | Selang AS |
| 35 | 115-8170 | [1] | TUBE AS |
| 36 | 116-4450 | [1] | TUBE AS |
| 37 | 116-4451 | [1] | TUBE AS |
| 38 | 116-4453 | [1] | TUBE AS |
| 39 | 116-4454 | [1] | TUBE AS |
| 40 | 116-4455 | [1] | TUBE AS |
| 41 | 116-8741 I | [1] | Selang AS |
| 42 | 116-8742 I | [1] | Selang AS |
| 43 | 116-9604 I | [1] | Selang AS |
| 44 | 116-9605 I | [1] | Selang AS |
| 45 | 156-1041 I | [1] | Selang AS |
| 46 | 8T-4910 M | [12] | BOLT (M12X1.75X60-MM) |
| 47 | 8T-4648 M | [4] | BOLT (M12X1.75X70-MM) |
| 48 | 117-0973 | [1] | BRACKET AS |
| 8T-3597 M | [2] | NUT-WELD (M12X1.75-THD) | |
| 49 | 117-3412 I | [1] | Selang AS |
| 50 | 117-4714 | [1] | TUBE AS |
| 51 | 8T-4223 | [94] | WASHER-HARD (13.5X25.5X3-MM THK) |
| 52 | 8T-4196 M | [8] | BOLT (M10X1.5X35-MM) |
| 53 | 118-7138 | [1] | MANIFOLD |
| 54 | 118-8589 | [1] | TUBE AS |
| 55 | 122-8502 | [1] | PLATE AS |
| 8T-3597 M | [5] | NUT-WELD (M12X1.75-THD) | |
| 56 | 6V-9008 | [1] | Lempung |
| 57 | 8T-4184 M | [5] | BOLT (M12X1.75X45-MM) |
| 58 | 130-8157 | [1] | Selang |
| 9X-2488 | [1] | KELAMP-HOSE | |
| 59 | 1P-4579 | [4] | Flang-Half |
| 60 | 1P-4584 | [4] | Flang-Half |
| 61 | 1S-6420 | [1] | CLIP |
| 62 | 4J-0522 | [11] | SEAL-O-RING |
| 63 | 4J-0524 | [2] | SEAL-O-RING |
| 64 | 4J-5573 | [2] | SEAL-O-RING |
| 65 | 5P-7462 | [2] | CLIP (SLOT) |
| 5P-7463 | [2] | CLIP (TAB) | |
| 66 | 8T-4183 M | [45] | BOLT (M12X1.75X40-MM) |
| 67 | 5P-7468 | [15] | CLIP (SLOT) |
| 5P-7469 | [15] | CLIP (TAB) | |
| 68 | 9X-8257 | [4] | WASHER (17.5X30X3.5-MM THK) |
| 69 | 5P-7470 | [4] | CLIP (SLOT) |
| 5P-7471 | [4] | CLIP (TAB) | |
| 5P-8182 | [4] | GROMMET (46-MM ID) | |
| 70 | 8T-4139 M | [20] | BOLT (M12X1.75X30-MM) |
| 71 | 7X-2549 M | [4] | BOLT (M12X1.75X100-MM) |
| 72 | 6J-2680 | [2] | SEAL-O-RING |
| 73 | 6V-0397 | [22] | Flang-Half |
| 74 | 6V-0683 | [2] | GROMMET |
| 75 | 6V-1867 | [1] | CLIP (SLOT) |
| 6V-1868 | [1] | CLIP (TAB) | |
| 76 | 8T-4121 | [11] | WASHER-HARD (11X21X2.5-MM THK) |
| 77 | 6V-1874 | [14] | GROMMET (31-MM ID) |
| 78 | 6V-4349 | [1] | GROMMET |
| 79 | 2M-9780 | [2] | SEAL-O-RING |
| 80 | 8T-6684 | [1] | Lempung |
| 81 | 5F-3106 | [1] | SEAL-O-RING |
| 82 | 5K-9090 | [2] | SEAL-O-RING |
| 83 | 8T-4192 M | [1] | BOLT (M12X1.75X25-MM) |
| 84 | 6V-9840 | [1] | TEE-SWIVEL |
| 85 | 6V-8397 | [1] | SEAL-O-RING |
| 86 | 6V-9746 | [2] | SEAL-O-RING |
| 87 | 8E-9734 I | [1] | Selang AS |
| 88 | 112-7913 Y | [1] | Pompa GP-Piston (FAN DRIVE) |
| 89 | 6V-8724 | [1] | Lempung |
| 90 | 147-6632 Y | [1] | VALVE & MTG GP-HYDRAULIC FAN (KONTROL Kecepatan) |
| 91 | 5P-8112 | [1] | GROMMET |
| 92 | 5P-7467 | [1] | CLIP (TAB) |
| 93 | 9X-8257 | [1] | WASHER (17.5X30X3.5-MM THK) |
| 94 | 5P-7466 | [1] | CLIP (SLOT) |
| 95 | 134-0317 | [1] | BRACKET |
| 96 | 5P-1404 | [1] | Adaptor |
| 97 | 5P-1042 | [1] | Adaptor-O-Ring |
| 98 | 8T-4183 M | [4] | BOLT (M12X1.75X40-MM) |
| 99 | 8T-4223 | [5] | WASHER-HARD (13.5X25.5X3-MM THK) |
| 100 | 3D-2824 | [1] | SEAL-O-RING |
| 101 | 3J-1907 | [1] | SEAL-O-RING |
| 102 | 6V-9854 | [1] | Elbow (SWIVEL) |
