216-4826 2164826 10R3808 Untuk CAT WHEEL LOADER 992G A11VO260 Hydraulic MAIN PUMP Pasang pasar kualitas tinggi Asli
| DESKRIPSI PRODUK |
||
| Model: 216-4826 2164826 10R3808 Untuk CAT WHEEL LOADER 992G A11VO260 Hydraulic MAIN PUMP Pasang pasar kualitas tinggi Asli | Kategori:Pompa hidraulik |
|
| Merek:TQ |
Tempat Asal:Negara Lain |
|
| Kondisi: Asli & OEM |
Garansi: 12 bulan |
|
| MOQ: 1 pcs |
Kapasitas produksi: 1000 pcs/bulan |
|
| Standar atau Tidak Standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Tradeassurance |
|
| Waktu pengiriman: 1-3 hari (tergantung pesanan) |
Cara Pengangkutan: Di Laut, Udara atau DHL/FEDEX/TNT/EMS |
|
| Jaminan:Kami akan memeriksa dan mengirim gambar rinci kepada pembeli untuk konfirmasi | ||

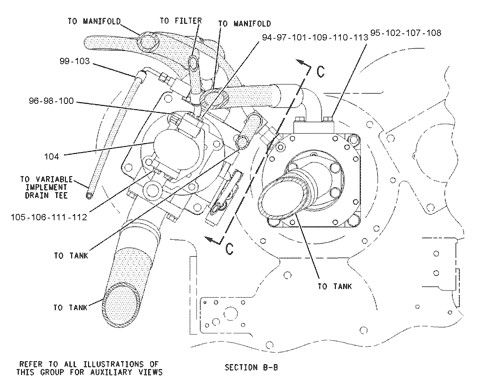

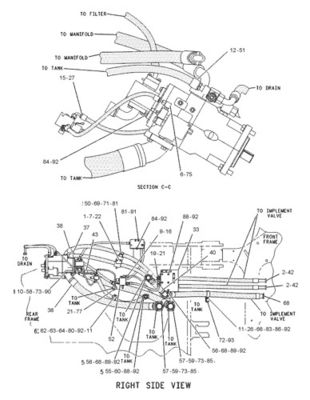

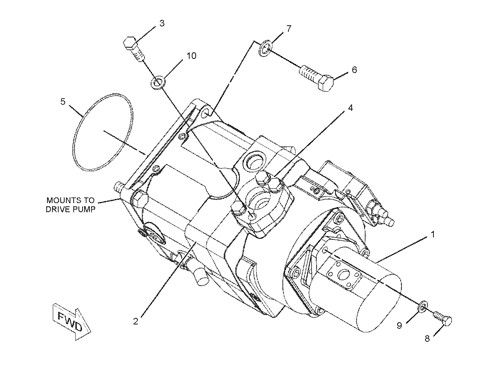

| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| 1 | 3E-9411 | [4] | WASHER-HARD (17.5X38X6-MM THK) | |
| 2 | 1P-3705 | [1] | SEAL-REKTANGULER | |
| 3 | 2S-4078 | [2] | SEAL-O-RING | |
| 4 | 3D-2824 | [1] | SEAL-O-RING | |
| 5 | 3E-7410 | [1] | TEE | |
| 6 | 3J-1907 | [5] | SEAL-O-RING | |
| 7 | 144-8531 | [1] | BRACKET AS | |
| 9R-2613 M | [2] | BOSS-WELD (M10X1.5X25-MM) | ||
| 8 | 3K-0360 | [1] | SEAL-O-RING | |
| 9 | 4E-3447 I | [1] | Selang AS | |
| 10 | 4H-9105 | [1] | SEAL-O-RING | |
| 11 | 8T-4244 M | [2] | NUT (M12X1.75-THD) | |
| 12 | 5K-9090 | [8] | SEAL-O-RING | |
| 13 | 6V-0852 | [2] | CAP-DUST | |
| 14 | 6V-3965 | [2] | FITNING (MEMPULANGKAN SEKARANG) | |
| 15 | 6V-8397 | [4] | SEAL-O-RING | |
| 16 | 6V-8398 | [3] | SEAL-O-RING | |
| 17 | 6V-8714 | [1] | Konektor | |
| 18 | 6V-8716 | [1] | Konektor (LANGsung) | |
| 19 | 6V-9182 | [2] | Lempung | |
| 20 | 6V-9746 | [5] | SEAL-O-RING | |
| 21 | 7M-8485 | [5] | SEAL-O-RING | |
| 22 | 7X-2553 M | [2] | BOLT (M16X2X40-MM) | |
| 23 | 8C-6515 | [1] | TEE | |
| 24 | 8E-9975 I | [1] | Selang AS | |
| 25 | 8J-5914 | [2] | PLUG | |
| 26 | 5P-7464 | [1] | CLIP (SLOT) | |
| 27 | 8X-9922 I | [1] | Selang AS | |
| 28 | 099-0169 M | [4] | BOLT (M16X2X55-MM) | |
| 29 | 104-7108 | [1] | VALVE GP-CHECK (PILOT pelaksana) | |
| 30 | 112-5381 Y | [1] | Pompa GP-Piston (IMPLEMENT FIXED DISPLACEMENT) | |
| 31 | 141-1462 Y | [1] | Pompa GP-Piston (implementasi dan perpindahan) | |
| 32 | 113-9502 | [1] | MANIFOLD | |
| 33 | 113-9503 | [1] | BRACKET | |
| 34 | 115-2129 Y | [1] | Filter GP-OIL (PILOT pelaksanaan) | |
| 35 | 115-4834 I | [1] | Selang AS | |
| 36 | 115-4839 I | [1] | Selang AS | |
| 37 | 115-4902 I | [1] | Selang AS | |
| 38 | 115-4903 I | [1] | Selang AS | |
| 39 | 115-4940 | [1] | PELAT | |
| 40 | 115-5638 | [1] | Selang AS | |
| 41 | 115-5639 I | [1] | Selang AS | |
| 42 | 115-5694 I | [2] | Selang AS | |
| 43 | 116-0701 I | [1] | Selang AS | |
| 44 | 116-0704 I | [1] | Selang AS | |
| 45 | 116-1935 I | [1] | Selang AS | |
| 47 | 143-3189 I | [2] | Selang AS | |
| 48 | 6V-9847 | [1] | TEE-SWIVEL | |
| 49 | 119-5699 I | [1] | Selang AS | |
| 50 | 8T-4186 M | BOLT (M10X1.5X40-MM) | ||
| 51 | 131-2949 I | [1] | Selang AS | |
| 52 | 133-7455 Y | [1] | VALVE & MTG GP-PILOT RELIEF | |
| 53 | 133-7456 Y | [1] | VALVE & MTG GP-PUMP CONTROL (TORQUE LIMITER) | |
| 54 | 8T-6430 M | [4] | BOLT (M20X2.5X50-MM) | |
| 55 | 1P-4579 | [2] | Flang-Half | |
| 56 | 1P-4584 | [6] | Flang-Half | |
| 57 | 1P-7016 | [6] | Flang-Half | |
| 58 | 1P-7017 | [2] | Flang-Half | |
| 59 | 1H-8128 | [3] | SEAL-O-RING | |
| 60 | 4J-0524 | [1] | SEAL-O-RING | |
| 61 | 5P-1076 | [6] | WASHER-HARD (13.5X30X4-MM THK) | |
| 62 | 5P-7470 | [1] | CLIP (SLOT) | |
| 63 | 5P-7471 | [1] | CLIP (TAB) | |
| 64 | 5P-7703 | [1] | GROMMET (52-MM ID) | |
| 65 | 5P-8077 | [10] | Flang-Half | |
| 66 | 8T-4194 M | [1] | BOLT (M12X1.75X50-MM) | |
| 67 | 6F-4718 | [2] | SEAL-O-RING | |
| 68 | 6J-2680 | [4] | SEAL-O-RING | |
| 69 | 6V-1572 | [2] | CLIP (SLOT) | |
| 6V-1573 | [2] | CLIP (TAB) | ||
| 70 | 8T-6466 M | [2] | Bolt (M10X1.5X60-MM) | |
| 71 | 6V-1574 | [2] | GROMMET (56MM ID) | |
| 72 | 6V-1867 | [1] | CLIP (SLOT) | |
| 6V-1868 | [1] | CLIP (TAB) | ||
| 73 | 9X-8257 | [36] | WASHER (17.5X30X3.5-MM THK) | |
| 74 | 6V-8636 | [1] | Konektor | |
| 75 | 6V-8724 | [1] | Lempung | |
| 76 | 6V-9002 | [1] | Lempung | |
| 77 | 6V-9005 | [1] | Lempung | |
| 78 | 6V-9854 | [1] | Elbow (SWIVEL) | |
| 79 | 7X-2563 M | [4] | BOLT (M20X2.5X60-MM) | |
| 80 | 8T-4956 M | [1] | BOLT (M12X1.75X35-MM) | |
| 81 | 8T-4121 | [10] | WASHER-HARD (11X21X2.5-MM THK) | |
| 82 | 8T-4123 | [8] | WASHER (22X35X3.5-MM THK) | |
| 83 | 6V-1249 | [1] | GROMMET (22-MM ID) | |
| 84 | 8T-4139 M | [5] | BOLT (M12X1.75X30-MM) | |
| 85 | 8T-4140 M | [28] | BOLT (M16X2X60-MM) | |
| 86 | 5P-7465 | [1] | CLIP (TAB) | |
| 87 | 8T-4182 M | [2] | BOLT (M10X1.5X45-MM) | |
| 88 | 8T-4183 M | [16] | BOLT (M12X1.75X40-MM) | |
| 89 | 8T-4184 M | [12] | BOLT (M12X1.75X45-MM) | |
| 90 | 8T-4193 M | [4] | BOLT (M16X2X50-MM) | |
| 91 | 8T-4195 M | [4] | BOLT (M10X1.5X30-MM) | |
| 92 | 8T-4223 | [31] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 93 | 5P-5923 E | SEAL (20CM) | ||
| 94 | 1P-3703 | [1] | SEAL-REKTANGULER | |
| 95 | 1P-3705 | [1] | SEAL-REKTANGULER | |
| 96 | 3J-7354 | [1] | SEAL-O-RING | |
| 97 | 4J-0520 | [1] | SEAL-O-RING | |
| 98 | 8C-3451 | [1] | Cap-Dust (HYDRAULIC OIL) | |
| 99 | 6V-8397 | [2] | SEAL-O-RING | |
| 100 | 8C-3446 | [1] | Pengambilan Sampel Katup | |
| 101 | 8R-7723 | [1] | Adaptor | |
| 102 | 099-0169 M | [4] | BOLT (M16X2X55-MM) | |
| 103 | 117-4666 I | [1] | Selang AS | |
| 104 | 136-3965 Y | [1] | PUMP GP-GEAR (STERING & IMPLEMENT PILOT) | |
| 105 | 1P-4579 | [2] | Flang-Half | |
| 106 | 4J-0524 | [1] | SEAL-O-RING | |
| 107 | 5P-8077 | [2] | Flang-Half | |
| 108 | 9X-8257 | [4] | WASHER (17.5X30X3.5-MM THK) | |
| 109 | 8C-3206 | [2] | Flang-Half | |
| 110 | 8T-4121 | [8] | WASHER-HARD (11X21X2.5-MM THK) | |
| 111 | 8T-4183 M | [4] | BOLT (M12X1.75X40-MM) | |
| 112 | 8T-4223 | [4] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 113 | 8T-5005 M | [4] | BOLT (M10X1.5X70-MM) |
