141-1463 1411463 Untuk CAT WHEEL LOADER 992G A11VO260 Hydraulic MAIN PUMP Pasang pasar kualitas tinggi Asli
| DESKRIPSI PRODUK |
||
| Model: 141-1463 1411463 Untuk CAT WHEEL LOADER 992G A11VO260 Hydraulic MAIN PUMP Pasang pasar kualitas tinggi Asli | Kategori:Pompa hidraulik |
|
| Merek:TQ |
Tempat Asal:Negara Lain |
|
| Kondisi: Asli & OEM |
Garansi: 12 bulan |
|
| MOQ: 1 pcs |
Kapasitas produksi: 1000 pcs/bulan |
|
| Standar atau Tidak Standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Tradeassurance |
|
| Waktu pengiriman: 1-3 hari (tergantung pesanan) |
Cara Pengangkutan: Di Laut, Udara atau DHL/FEDEX/TNT/EMS |
|
| Jaminan:Kami akan memeriksa dan mengirim gambar rinci kepada pembeli untuk konfirmasi | ||

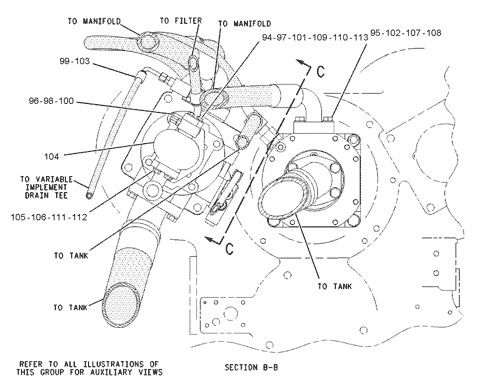

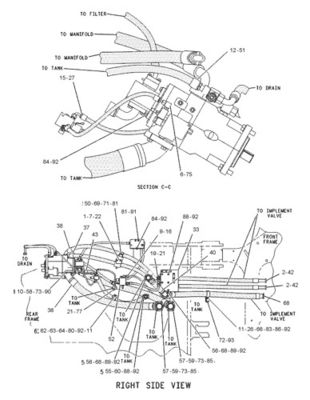

| Posisi. | Bagian No. | Qty | Nama bagian | Komentar |
| 1 | 3E-9411 | [4] | WASHER-HARD (17.5X38X6-MM THK) | |
| 2 | 1P-3705 | [1] | SEAL-REKTANGULER | |
| 3 | 2S-4078 | [2] | SEAL-O-RING | |
| 4 | 3D-2824 | [1] | SEAL-O-RING | |
| 5 | 3E-7410 | [1] | TEE | |
| 6 | 3J-1907 | [5] | SEAL-O-RING | |
| 7 | 144-8531 | [1] | BRACKET AS | |
| 9R-2613 M | [2] | BOSS-WELD (M10X1.5X25-MM) | ||
| 8 | 3K-0360 | [1] | SEAL-O-RING | |
| 9 | 4E-3447 I | [1] | Selang AS | |
| 10 | 4H-9105 | [1] | SEAL-O-RING | |
| 11 | 8T-4244 M | [2] | NUT (M12X1.75-THD) | |
| 12 | 5K-9090 | [8] | SEAL-O-RING | |
| 13 | 6V-0852 | [2] | CAP-DUST | |
| 14 | 6V-3965 | [2] | FITNING (MEMPULANGKAN SEKARANG) | |
| 15 | 6V-8397 | [4] | SEAL-O-RING | |
| 16 | 6V-8398 | [3] | SEAL-O-RING | |
| 17 | 6V-8714 | [1] | Konektor | |
| 18 | 6V-8716 | [1] | Konektor (LANGsung) | |
| 19 | 6V-9182 | [2] | Lempung | |
| 20 | 6V-9746 | [5] | SEAL-O-RING | |
| 21 | 7M-8485 | [5] | SEAL-O-RING | |
| 22 | 7X-2553 M | [2] | BOLT (M16X2X40-MM) | |
| 23 | 8C-6515 | [1] | TEE | |
| 24 | 8E-9975 I | [1] | Selang AS | |
| 25 | 8J-5914 | [2] | PLUG | |
| 26 | 5P-7464 | [1] | CLIP (SLOT) | |
| 27 | 8X-9922 I | [1] | Selang AS | |
| 28 | 099-0169 M | [4] | BOLT (M16X2X55-MM) | |
| 29 | 104-7108 | [1] | VALVE GP-CHECK (PILOT pelaksana) | |
| 30 | 112-5381 Y | [1] | Pompa GP-Piston (IMPLEMENT FIXED DISPLACEMENT) | |
| 31 | 141-1462 Y | [1] | Pompa GP-Piston (implementasi dan perpindahan) | |
| 32 | 113-9502 | [1] | MANIFOLD | |
| 33 | 113-9503 | [1] | BRACKET | |
| 34 | 115-2129 Y | [1] | Filter GP-OIL (PILOT pelaksanaan) | |
| 35 | 115-4834 I | [1] | Selang AS | |
| 36 | 115-4839 I | [1] | Selang AS | |
| 37 | 115-4902 I | [1] | Selang AS | |
| 38 | 115-4903 I | [1] | Selang AS | |
| 39 | 115-4940 | [1] | PELAT | |
| 40 | 115-5638 | [1] | Selang AS | |
| 41 | 115-5639 I | [1] | Selang AS | |
| 42 | 115-5694 I | [2] | Selang AS | |
| 43 | 116-0701 I | [1] | Selang AS | |
| 44 | 116-0704 I | [1] | Selang AS | |
| 45 | 116-1935 I | [1] | Selang AS | |
| 47 | 143-3189 I | [2] | Selang AS | |
| 48 | 6V-9847 | [1] | TEE-SWIVEL | |
| 49 | 119-5699 I | [1] | Selang AS | |
| 50 | 8T-4186 M | BOLT (M10X1.5X40-MM) | ||
| 51 | 131-2949 I | [1] | Selang AS | |
| 52 | 133-7455 Y | [1] | VALVE & MTG GP-PILOT RELIEF | |
| 53 | 133-7456 Y | [1] | VALVE & MTG GP-PUMP CONTROL (TORQUE LIMITER) | |
| 54 | 8T-6430 M | [4] | BOLT (M20X2.5X50-MM) | |
| 55 | 1P-4579 | [2] | Flang-Half | |
| 56 | 1P-4584 | [6] | Flang-Half | |
| 57 | 1P-7016 | [6] | Flang-Half | |
| 58 | 1P-7017 | [2] | Flang-Half | |
| 59 | 1H-8128 | [3] | SEAL-O-RING | |
| 60 | 4J-0524 | [1] | SEAL-O-RING | |
| 61 | 5P-1076 | [6] | WASHER-HARD (13.5X30X4-MM THK) | |
| 62 | 5P-7470 | [1] | CLIP (SLOT) | |
| 63 | 5P-7471 | [1] | CLIP (TAB) | |
| 64 | 5P-7703 | [1] | GROMMET (52-MM ID) | |
| 65 | 5P-8077 | [10] | Flang-Half | |
| 66 | 8T-4194 M | [1] | BOLT (M12X1.75X50-MM) | |
| 67 | 6F-4718 | [2] | SEAL-O-RING | |
| 68 | 6J-2680 | [4] | SEAL-O-RING | |
| 69 | 6V-1572 | [2] | CLIP (SLOT) | |
| 6V-1573 | [2] | CLIP (TAB) | ||
| 70 | 8T-6466 M | [2] | Bolt (M10X1.5X60-MM) | |
| 71 | 6V-1574 | [2] | GROMMET (56MM ID) | |
| 72 | 6V-1867 | [1] | CLIP (SLOT) | |
| 6V-1868 | [1] | CLIP (TAB) | ||
| 73 | 9X-8257 | [36] | WASHER (17.5X30X3.5-MM THK) | |
| 74 | 6V-8636 | [1] | Konektor | |
| 75 | 6V-8724 | [1] | Lempung | |
| 76 | 6V-9002 | [1] | Lempung | |
| 77 | 6V-9005 | [1] | Lempung | |
| 78 | 6V-9854 | [1] | Elbow (SWIVEL) | |
| 79 | 7X-2563 M | [4] | BOLT (M20X2.5X60-MM) | |
| 80 | 8T-4956 M | [1] | BOLT (M12X1.75X35-MM) | |
| 81 | 8T-4121 | [10] | WASHER-HARD (11X21X2.5-MM THK) | |
| 82 | 8T-4123 | [8] | WASHER (22X35X3.5-MM THK) | |
| 83 | 6V-1249 | [1] | GROMMET (22-MM ID) | |
| 84 | 8T-4139 M | [5] | BOLT (M12X1.75X30-MM) | |
| 85 | 8T-4140 M | [28] | BOLT (M16X2X60-MM) | |
| 86 | 5P-7465 | [1] | CLIP (TAB) | |
| 87 | 8T-4182 M | [2] | BOLT (M10X1.5X45-MM) | |
| 88 | 8T-4183 M | [16] | BOLT (M12X1.75X40-MM) | |
| 89 | 8T-4184 M | [12] | BOLT (M12X1.75X45-MM) | |
| 90 | 8T-4193 M | [4] | BOLT (M16X2X50-MM) | |
| 91 | 8T-4195 M | [4] | BOLT (M10X1.5X30-MM) | |
| 92 | 8T-4223 | [31] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 93 | 5P-5923 E | SEAL (20CM) | ||
| 94 | 1P-3703 | [1] | SEAL-REKTANGULER | |
| 95 | 1P-3705 | [1] | SEAL-REKTANGULER | |
| 96 | 3J-7354 | [1] | SEAL-O-RING | |
| 97 | 4J-0520 | [1] | SEAL-O-RING | |
| 98 | 8C-3451 | [1] | Cap-Dust (HYDRAULIC OIL) | |
| 99 | 6V-8397 | [2] | SEAL-O-RING | |
| 100 | 8C-3446 | [1] | Pengambilan Sampel Katup | |
| 101 | 8R-7723 | [1] | Adaptor | |
| 102 | 099-0169 M | [4] | BOLT (M16X2X55-MM) | |
| 103 | 117-4666 I | [1] | Selang AS | |
| 104 | 136-3965 Y | [1] | PUMP GP-GEAR (STERING & IMPLEMENT PILOT) | |
| 105 | 1P-4579 | [2] | Flang-Half | |
| 106 | 4J-0524 | [1] | SEAL-O-RING | |
| 107 | 5P-8077 | [2] | Flang-Half | |
| 108 | 9X-8257 | [4] | WASHER (17.5X30X3.5-MM THK) | |
| 109 | 8C-3206 | [2] | Flang-Half | |
| 110 | 8T-4121 | [8] | WASHER-HARD (11X21X2.5-MM THK) | |
| 111 | 8T-4183 M | [4] | BOLT (M12X1.75X40-MM) | |
| 112 | 8T-4223 | [4] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 113 | 8T-5005 M | [4] | BOLT (M10X1.5X70-MM) |
Mengapa memilih kami?
1Apakah Anda masih menemukan perusahaan yang dapat menyediakansolusi satu atapMengapa tidak memilih kami?
2Apakah Anda masih menemukan perusahaan yang bisa menyediakanberkualitas tinggiproduk denganharga perbandinganBagaimana dengan memilih kita?
3, Apakah Anda masih menemukan perusahaan yang senang untuk mengambilPelayanan yang baikMengapa tidak mempertimbangkan kami?
4, Apakah Anda memiliki persyaratan yang tinggi untuk produk, ant berharap itu bisa memilikistok besar,waktu pengiriman singkatdanjangka waktu garansi yang panjangSelamat datang di perusahaan kami dan memilih produk yang memenuhi kebutuhan Anda.
5, Sebagai perusahaan profesional di industri ini, kami memilikidata yang akuratUntuk mengikuti pertanyaan nomor bagian merek excavator, menjamin harga produk yang benar. Anda dapat mempercayai kami karena kami dapat menemukan bagian untuk hampir semua kebutuhan Anda.
