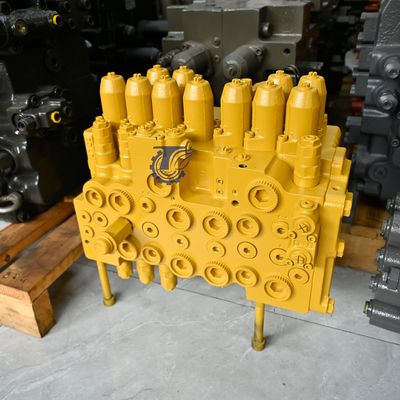

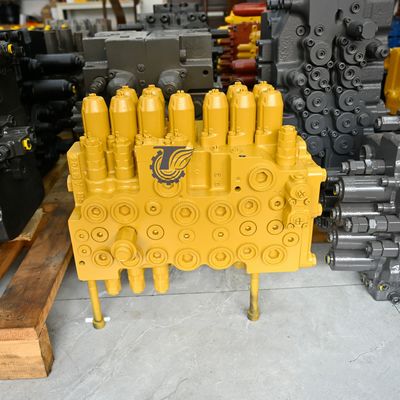

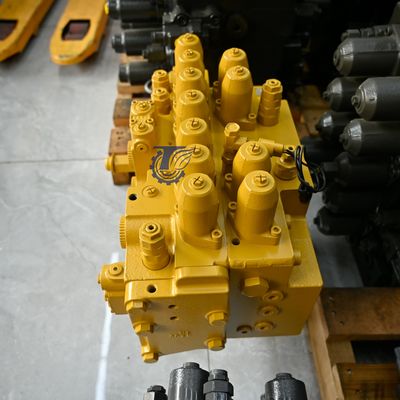

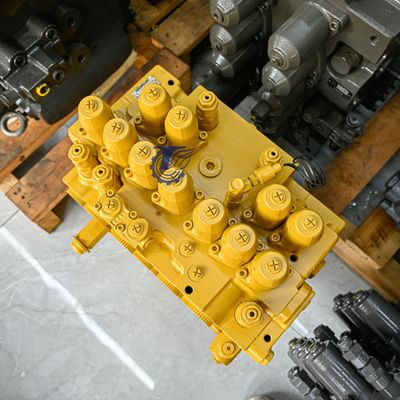

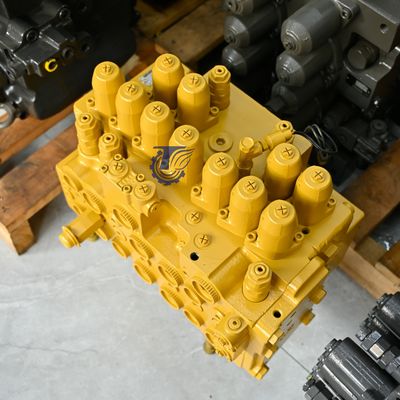

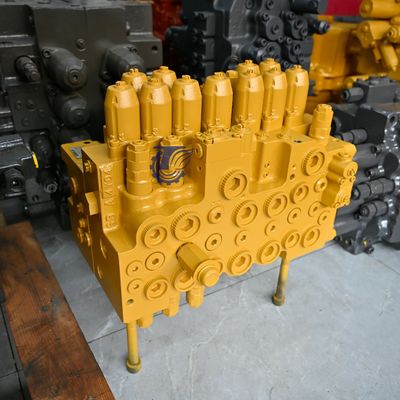

Katup kontrol hidraulik 2063338 katup kontrol utama 206-3338 distributor hidraulik cocok untuk kucing E314c E314 bagian perbaikan excavator
| DESKRIPSI PRODUK |
||
| Model:Katup kontrol hidraulik 2063338 katup kontrol utama 206-3338 distributor hidraulik cocok untuk kucing E314c E314 bagian perbaikan excavator | Kategori:Katup Kontrol Utama |
|
| Merek:TQ |
Tempat Asal:Negara Lain |
|
| Kondisi: |
Jaminan: 12 bulan |
|
| MOQ: 1 pcs |
Kapasitas produksi: 300 pcs/bulan |
|
| Standar atau Tidak Standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Jaminan Perdagangan |
|
| Waktu pengiriman: 3-7 hari (tergantung pesanan) |
Cara Pengangkutan: Di Laut, Udara atau DHL/FEDEX/TNT/EMS |
|
CA2063338
206-3338
2063338
Caterpillar 2063338 Komponen katup kontrol utama
Berat: 356 lbs 161 kg.
| Posisi. | Bagian No. | Qty | Nama bagian |
| 1 | 095-1592 | [1] | SEAL-O-RING |
| 2 | 197-0146 | [1] | SPRING |
| 3 | 197-0147 | [1] | VALVE |
| 4 | 197-0211 Y | [1] | SPOOL GP-CONTROL VALVE (STICK I) |
| 5 | 7I-7250 | [1] | Pemeriksaan beban katup |
| 6 | 5A-3604 M | [22] | Kepala soket baut (M8X1.25X25-MM) |
| 7 | 197-0165 M | [22] | BOLT (M8X1.25X20-MM) |
| 8 | 197-0167 | [1] | PELAT |
| 9 | 095-1578 | [12] | SEAL-O-RING |
| 10 | 095-1696 | [8] | SEAL-O-RING |
| 11 | 104-8107 M | [5] | Kepala soket baut (M14X2X55-MM) |
| 12 | 095-1698 | [18] | SEAL-O-RING |
| 13 | 197-0145 | [14] | PLUG |
| 14 | 095-1582 | [14] | SEAL-O-RING |
| 15 | 095-1585 | [11] | SEAL-O-RING |
| 16 | 197-0272 | [8] | PLUG |
| 17 | 197-0143 M | [3] | BOLT (M14X2X95-MM) |
| 18 | 3D-2824 | [12] | SEAL-O-RING |
| 19 | 9S-4183 | [12] | PLUG (1-1/16-12-THD) |
| 20 | 197-0144 M | [13] | BOLT (M14X2X130-MM) |
| 21 | 7I-7192 | [2] | PLUG |
| 22 | 215-4855 | [2] | VALVE AS-CHECK (MAKEUP) |
| 23 | 095-1700 | [11] | SEAL-O-RING |
| 24 | 197-0168 | [11] | PELUAR |
| 25 | 197-0223 Y | [6] | VALVE GP-RELIEF |
| 26 | 7I-7208 | [10] | Pemeriksaan beban katup |
| 27 | 7I-7207 | [13] | SPRING |
| 28 | 095-1586 | [15] | SEAL-O-RING |
| 29 | 7I-7206 | [13] | PLUG |
| 30 | 197-0213 Y | [1] | VALVE Kontrol GP SPOOL (BUCKET) |
| 31 | 7I-7204 | [11] | SEAL |
| 32 | 197-0170 | [11] | PELUAR |
| 33 | 197-0175 Y | [1] | VALVEL KONTROL GP SPOOL (STICK II) |
| 34 | 197-0225 | [2] | PLUG AS |
| 35 | 197-0173 Y | [1] | SPOOL GP-CONTROL VALVE (alat kerja) |
| 36 | 201-9376 Y | [1] | VALVE Kontrol GP SPOOL (BOOM II) |
| 37 | 131-5767 | [2] | PLUG |
| 38 | 105-7405 | [2] | SPRING |
| 39 | 131-5768 | [2] | Pemeriksaan beban katup |
| 40 | 197-0169 | [1] | VALVE AS (REDUCTION STICK DRIFT) |
| 40A. | 197-0169 | [1] | VALVE AS (REDUCTION BOOM DRIFT) |
| 41 | 197-0178 Y | [1] | VALVEL KONTROL SPOOL GP (BOOM I) |
| 42 | 7I-7235 | [1] | PLUG |
| 43 | 3J-1907 | [1] | SEAL-O-RING |
| 44 | 9S-4191 | [1] | PLUG (9/16-18-THD) |
| 45 | 201-9271 | [1] | SPOOL AS |
| 46 | 103-8413 | [1] | ROD |
| 47 | 103-8412 | [1] | SPRING |
| 48 | 103-8411 | [1] | SPRING |
| 49 | 197-0166 | [1] | PLUG |
| 50 | 7I-8084 | [6] | PLUG |
| 51 | 197-0219 Y | [2] | SPOOL GP-CONTROL VALVE (TRAVEL) |
| 52 | 206-3165 Y | [1] | VALVE GP-RELIEF |
| 53 | 095-0965 | [2] | PLUG |
| 54 | 7I-7241 | [2] | Oriffice |
| 55 | 197-0217 Y | [1] | SPOOL GP-CONTROL VALVE (REGENERASI STICK) |
| 56 | 206-3345 Y | [1] | SPOOL GP-CONTROL VALVE (Swing) |
| 57 | 201-9392 Y | [1] | SPOOL GP-CONTROL VALVE (PRIORITAS SWING) |
| 58 | 215-4872 | [2] | VALVE |
Kami juga menawarkan katup kontrol berikut
|
Produsen dan Merek
|
Model
|
|
CAT
|
E320 E320B E320C E320D E320D2 E320D2L E330 E330B E330C E330D E330D2 E320D2 E330D E330D2 E3336D E3336D2 E305.5 E306 E307 E308 E312 E315 E318 E320 E323 E325 E330 E336 E345 E349 E365 E374 E390 E395 CAT305.5 CAT306 CAT307 CAT30 8 CAT312 CAT315 CAT320 CAT323 CAT324 CAT325 CAT326 CAT330 CAT336 CAT345 CAT349 CAT365 CAT374 CAT390 CAT395
|
|
Hitachi
|
EX100,EX100-2,EX100-3,EX100-5,EX120-2,EX120-3,EX120-5,EX160-5,EX200 LC,EX220 LC,EX230 LC,EX300,EX300 LC,EX330 LC,EX400 LC,EX450 LC,EX550 LC,ZX120,ZX120-3,ZX200,ZX230,ZX250,ZX350
|
|
Komatsu
|
PC200 PC200-6 PC200-7 PC200-8 PC200-8MO PC200-10 PC300 PC300-7 PC300-8 PC300-8MO PC300-10 PC45 PC50 PC55 PC56 PC60-5-6-7 PC60-8 PC70-8 PC78 PC100-3 PC120-6 PC130-7 PC200 PC200-7 PC200-8 PC220 PC270 PC240 PC300-6 PC300-7 PC300-8 PC360 PC400-6 PC400-7 PC400-8 PC450-6 PC600-6 PC650-3 PC650 PC800 PC1000 PC1200 PC1250 PC55 PC100 PC120 PC200 PC210 PC240 PC300 PC360 PC400 PC450 PC600 PC800 PC1000 pc1250 pc2000 pc3000
|
|
Volvo
|
EC55,EC210,EC240,EC290,EC360,EC460,EC700
EC35C,EC50,EC55B,EC60,EC70,EW50,EW50B,EW60C,EW70,EW130,EW130C,EW140B,EW150C,EW160B,EW170,EW180B,EW200B,EW230B,EC130C,EC135B LC,EC140LC,EC140B LC,EC150LC,EC160B LC,EC180B LC,EC200,EC200B,EC210B LC, EC220DL, EC230B, EC240B LC, EC250DL, EC280, EC290B LC, EC300DL, EC330B LC, EC360B LC, EC380DL, EC390, EC450, EC460B LC, EC4 80DL, EC700B
|
|
Kobelco
|
SK200 SK200-2 SK200-3 SK200-6 SK200-6E SK200-8 SK230 SK250 SK330-8 SK330-6 SK350 SK400 SK450 SK480
|
|
Hyundai
|
Robex R16-7 R17-9VS R17Z-9VS R22-7 R25Z-7 R35Z R35Z-9 R36N-7R60-7E R60-7G R60-9S R60-9VS R60-V R60CR-9A R60G R60VS R66VS R75DVS R75-7 R75-V R75BVS R75VS R80, R80-7 R80-7B R80-8B R80-9B R80-9B R80-9H R80G R110-7 R110D-7 R110D-7A R110VS R130, R130-3 R130-5 R130LC-5 R130LVS R130WD-5 R130VS R140,R140LC-7 R140LC-7A R140LCD-7 R140LCD-7A R140LCM-7, R150LC-9, R150LVS R110-7, R160LC-7, R160LCD-7 R170LC-5 R180LC-7 R180LC-7A R180LCD-7 R180LCD-7A R190-5 R200-5 R200-5D R200LC R210, R210-5 R210-5D R210LC, R210-7,R210-7H R210-V R210LC-3 R210LC-5 R210LC-7 R210LC-7A R210LC-7H R210LC-7LR R210LC-9 R210NLC-7 R215-7 R215-7C R215-9 R215-9C R215LVS R215VS R220R220LC,HX220L R220-5 0-7,R220-V R220LC-5,R220-5,R225-7,ROBEX 220LC-9S R225LVS R225-9T,R225LC-7,R225LC-9T R225LC-9V R230LVS R245-7 R245LC-9F R250LC-7 R250LC-7A R250LC-9 R250NLC-7 R260LC-5 R260LC-7 R265LC-7 R265LC-9 R275LC-9T R275LC-9V R275LVS R290LC-7 R290LC-7A R290LC-7LR R290LCR290, R290LC-7, R290LC-9 R290NLC-7 R290NLC-7A R300LC-5 R305, R305LVS R305LC-7,R305LC-9 R305LC-9T R320LC-3 R320LC-5 R320LC-7 R320LC-7A R320NLC-7A R320NLC-7 R335-7 R335LC-7 R335LC-9 R335LC-9T R350LVS R350-7, R350LC-9V R355LVS R360LC-7 R360LC-7A R370LC-7 R375LC-7 R375LC-7H R385LC-9 R385LC-9T R385LVS R420 R450 R450-7 R450-7A R450LC-5 R450LC-7 R450LC-7A R455LC-7 R455LC-9T R485LC-9 R485LC-9T R485LC-9V R485LVS R495LVS R500LC-7 R500LC-7A R505LC-7 R505LVS R515LC-9T R520L-9VS R520LC R805LC R805LC-7 R805L-9VS HL1200-9 R110-9R215-9, R275LC-9, R305, R305-7, R320, R335-7, R360, R370, R375, R375-7H, R455, R460,R485-7 R55W-7 R55Wi R60W-5 R60W-7 R60W-9 R60WVS R90W-9 R130W-3 R130W-5 HW140 R140W-7 R150WVS R150W-5 R150W-7 R150W-9 R150W-V R170W-3 R170W-7 R180W-9A R200W-3 R200W-5 R200W-7 R210W R210W-5 R210W-7 R210W-9
|
|
Sumitomo
|
SH55 SH60 SH75 SH50 SH100 SH120 SH200 SH200-3-5 SH220-2-3 SH280 SH300 SH350 SH400 SH450 SH200-A3 SH200-A5 SH200-3 SH200-5
|
|
KAWASAK / KPM
|
UX28, UX32, KMX32N, KMX15RA, KMX15RB
|
