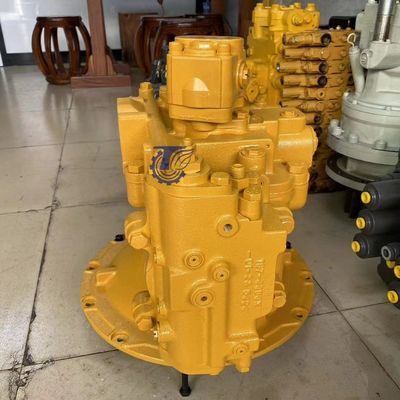

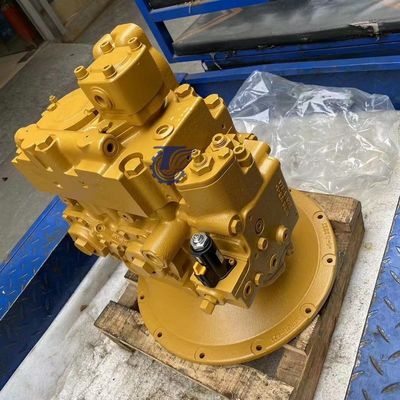

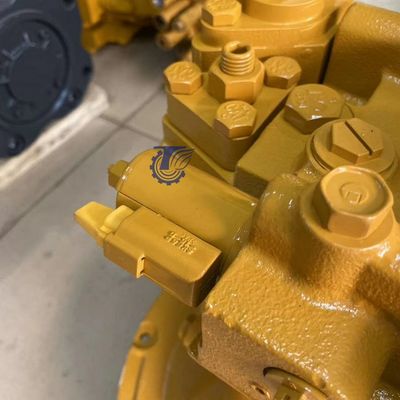

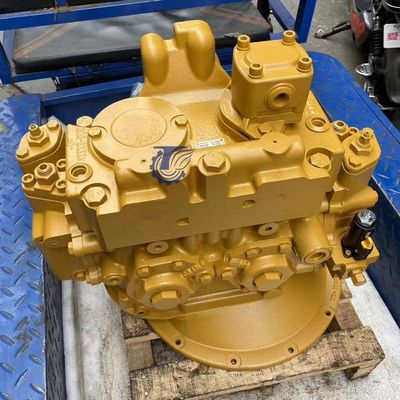

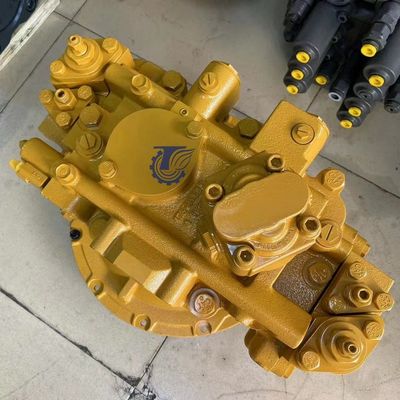

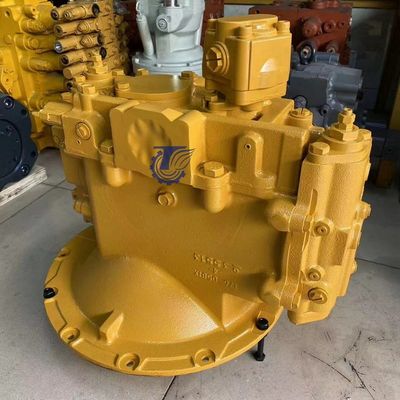

244-5326 194-8300 196-8246 200-3365 cat 311 312 313 315 318C SBS80 pompa hidrolik
| DESKRIPSI PRODUK |
||
| Model:244-5326 194-8300 196-8246 200-3365 cat 311 312 313 315 318C SBS80 pompa hidrolik | Kategori:Pompa hidraulik |
|
| Merek:TQ |
Tempat Asal:Negara Lain |
|
| Kondisi: Asli & OEM |
Garansi: 12 bulan |
|
| MOQ: 1 pcs |
Kapasitas produksi: 1000 pcs/bulan |
|
| Standar atau Tidak Standar: Standar |
Istilah Pembayaran: L/C, T/T, Western Union, Jaminan Perdagangan |
|
| Waktu pengiriman: 1-3 hari (tergantung pesanan) |
Cara Pengangkutan: Di Laut, Udara atau DHL/FEDEX/TNT/EMS |
|
| Jaminan:Kami akan memeriksa dan mengirim gambar rinci kepada pembeli untuk konfirmasi | ||
| Posisi. | Bagian No. | Qty | Nama bagian |
| 1 | 4I-1022 | [2] | Oriffice |
| 2 | 7Y-4215 | [2] | SPACER |
| 3 | 096-3983 | [1] | Pengendalian cincin |
| 4 | 118-4057 | [18] | SPRING |
| 5 | 126-2016 J | [1] | Pump GP-GEAR (PILOT) |
| 9T-0835 | [1] | Pengendalian cincin | |
| 6 | 129-7854 | [1] | Pengadilan |
| 7 | 129-7855 | [1] | GASKET |
| 8 | 129-7857 | [1] | GASKET |
| 9 | 129-7859 | [2] | SET-LAYER |
| 10 | 129-7863 | [1] | PELUAR |
| 11 | 129-7921 | [2] | Pengendalian cincin |
| 12 | 129-7925 | [1] | TIPU SEAL-LIP |
| 13 | 129-7927 | [2] | Keterangan: |
| 14 | 129-7979 | [4] | Dowell |
| 15 | 150-5782 | [2] | PELUAR |
| 16 | 173-3391 | [1] | SHAFT-DRIVE |
| 17 | 173-3427 | [2] | Guide-Ball |
| 18 | 173-3473 | [2] | PELAT |
| 19 | 173-3496 | [1] | Barel AS (Drive) |
| 20 | 173-3498 | [1] | Barel AS (DIRIVEN) |
| 21 | 177-2470 | [1] | PELUAR |
| 22 | 177-2471 | [1] | PELUAR |
| 23 | 177-8740 | [1] | SEAL-O-RING |
| 24 | 179-9763 | [1] | Flang |
| 25 | 191-5709 | [2] | PISTON AS |
| 26 | 192-0573 | [4] | PIN-DOWEL |
| 27 | 194-8301 Y | [1] | ACTUATOR GP-PUMP (DRIVE) |
| 28 | 194-8302 Y | [1] | ACTUATOR GP-PUMP (DIRIVEN) |
| 29 | 200-3333 | [1] | Head-Pump |
| 30 | 200-3334 | [1] | PELUAR |
| 31 | 200-3368 | [1] | SHAFT |
| 32 | 242-6801 | [2] | SWASHPLATE AS |
| (SATU-SATU TERTINGGI) | |||
| 094-1875 | [1] | Dowell | |
| 173-3428 | [1] | BUSHING | |
| 242-6803 | [2] | PIN-DOWEL | |
| 33 | 242-6804 | [4] | Keterangan: |
| 34 | 9S-4185 | [2] | PLUG (3/4-16-THD) |
| 35 | Z | [1] | Badan |
| 36 | 247-8920 | [2] | Oriffice |
| 37 | 094-1875 | [6] | Dowell |
| 38 | 094-1882 | [16] | PLUG |
| 39 | 095-0946 | [2] | Pengendalian cincin |
| 40 | 8T-4196 M | [2] | BOLT (M10X1.5X35-MM) |
| 41 | 096-3944 | [1] | SEAL-O-RING |
| 42 | 189-9763 | [8] | SEAL-O-RING |
| 43 | 190-4896 | [2] | PLUG |
| 44 | 193-1736 | [4] | SEAL-O-RING |
| 45 | 3K-0360 | [2] | SEAL-O-RING |
| 46 | 7M-8485 | [2] | SEAL-O-RING |
| 47 | 7X-2557 M | [1] | BOLT (M16X2X140-MM) |
| 48 | 8J-4645 | [2] | Plug (O-Ring benang lurus) |
| 49 | 8T-3338 | [2] | SEAL-O-RING |
| 50 | 8T-4136 M | [18] | BOLT (M10X1.5X25-MM) |
| 51 | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) |
| 52 | 8T-4139 M | [10] | BOLT (M12X1.75X30-MM) |
| 53 | 8T-4140 M | [4] | BOLT (M16X2X60-MM) |
| 54 | 8T-4175 M | [2] | BOLT (M16X2X90-MM) |
| 55 | 8T-4176 M | [2] | BOLT (M12X1.75X90-MM) |
| 56 | 8T-4192 M | [10] | BOLT (M12X1.75X25-MM) |
| KIT PEMBERAHAN yang tersedia: | |||
| 250-2503 J | [1] | KIT-SEAL (PILOT GEAR Pump) | |
| 1 | 194-8301 Y | [1] | ACTUATOR GP-PUMP (DRIVE) |
| 2 | 177-2470 | [1] | PELUAR |
| 3 | 7X-2557 M | [1] | BOLT (M16X2X140-MM) |
| 4 | 177-2471 | [1] | PELUAR |
| 5 | 194-8302 Y | [1] | ACTUATOR GP-PUMP (DIRIVEN) |
| 6 | 8T-4176 M | [2] | BOLT (M12X1.75X90-MM) |
| 7 | 8T-4140 M | [4] | BOLT (M16X2X60-MM) |
| 8 | 094-1882 | [16] | PLUG |
| 9 | 200-3333 | [1] | Head-Pump |
| 10 | 129-7979 | [4] | Dowell |
| 11 | 9S-4185 | [3] | PLUG (3/4-16-THD) |
| 12 | 3K-0360 | [3] | SEAL-O-RING |
| 13 | 8T-4136 M | [18] | BOLT (M10X1.5X25-MM) |
| 14 | 173-3371 | [1] | Badan |
| 15 | 150-5782 | [2] | PELUAR |
| 16 | 8T-4139 M | [10] | BOLT (M12X1.75X30-MM) |
| 17 | 129-7863 | [1] | PELUAR |
| 18 | 129-7857 | [1] | GASKET |
| 19 | 179-9763 | [1] | Flang |
| 20 | 189-9763 | [8] | SEAL-O-RING |
| 21 | 095-0946 | [2] | Pengendalian cincin |
| 22 | 129-7921 | [2] | Pengendalian cincin |
| 23 | 150-5785 | [4] | Dowell |
| 24 | 191-5709 | [2] | PISTON AS |
| 25 | 173-3498 | [1] | BARREL AS |
| 26 | 177-8740 | [1] | SEAL-O-RING |
| 27 | 191-5599 | [2] | PLUG |
| 28 | 160-4409 | [2] | Oriffice |
| 29 | 200-3334 | [1] | PELUAR |
| 30 | 8T-3338 | [2] | SEAL-O-RING |
| 31 | 129-7859 | [2] | SET-LAYER |
| 32 | 118-4057 | [18] | SPRING |
| 33 | 7Y-4215 | [2] | SPACER |
| 34 | 173-3427 | [2] | Guide-Ball |
| 35 | 173-3473 | [2] | PELAT |
| 36 | 194-8397 | [2] | SWASHPLATE AS |
| (SATU-SATU TERTINGGI) | |||
| 150-5785 | [1] | Dowell | |
| 173-3428 | [1] | BUSHING | |
| 192-0573 | [2] | PIN-DOWEL | |
| 37 | 177-2583 | [4] | Keterangan: |
| 38 | 129-7927 | [2] | Keterangan: |
| 39 | 129-7855 | [1] | GASKET |
| 40 | 200-3368 | [1] | SHAFT |
| 41 | 7M-8485 | [2] | SEAL-O-RING |
| 42 | 8J-4645 | [2] | Plug (O-Ring benang lurus) |
| 43 | 8T-4196 M | [2] | BOLT (M10X1.5X35-MM) |
| 44 | 4I-1022 | [2] | Oriffice |
| 45 | 094-1875 | [6] | Dowell |
| 46 | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) |
| 47 | 126-2016 | [1] | Pump GP-GEAR (PILOT) |
| 48 | 173-3496 | [1] | BARREL AS |
| 49 | 8T-4192 M | [10] | BOLT (M12X1.75X25-MM) |
| 50 | 129-7854 | [1] | Pengadilan |
| 51 | 173-3391 | [1] | SHAFT-DRIVE |
| 52 | 129-7925 | [1] | TIPU SEAL-LIP |
| 53 | 096-3983 | [1] | Pengendalian cincin |
| 54 | 096-3944 | [1] | SEAL-O-RING |
| 57 | 8T-4175 M | [2] | BOLT (M16X2X90-MM) |
| 58 | 193-1736 | [4] | SEAL-O-RING |
